Training and Education Drone

Training and Education Drone

As drones gain traction across industries—from surveying and agriculture to filmmaking and public safety—the demand for skilled operators is rising. Comprehensive drone flying training programs are essential to ensure safe, responsible, and regulation-compliant operations. A solid grasp of aviation regulations, drone specifications, and power sources (batteries) is key to effective training. Selecting the right power solution is crucial for training success.

Drone Weight and License Classifications

United States – FAA Regulations

Weight-Based Registration:

1. ≤ 0.55 lb (250 g): Typically exempt from registration for recreational or basic educational use under limited exceptions, though they cannot be operated under Part 107.

2. > 0.55 lb up to 55 lb: Must be registered with the FAA regardless of recreational or commercial use, due to their higher potential risk.

3. > 55 lb: Require a more involved registration process and additional authorizations because of the increased potential for harm.

License Requirements:

1.Recreational Flyers: Must follow the Recreational UAS Safety Test (TRUST) guidelines and community safety practices, mainly for non-commercial activities.

2.Commercial Operators: Must hold a Part 107 Remote Pilot Certificate, which involves age, language proficiency, physical and mental fitness criteria, and passing an Aeronautical Knowledge Test. Additionally, all drones used for commercial purposes must be registered, regardless of weight.

European Union – EASA Regulations

Risk-Based Categories:

Open Category: Designed for most recreational and low-risk commercial operations, subdivided based on weight and operational conditions.

Subcategory A1: For drones under 250 g (or classified as C0) and C1 drones under 900 g. Basic training or manual reading is required, with restrictions on flying over uninvolved people.

Subcategory A2: For C2 drones under 4 kg, requiring a Remote Pilot Certificate of Competency and adherence to specific distance rules from uninvolved people.

Subcategory A3: For heavier drones (C3/C4 or those under 25 kg without a class marking) where flights must avoid uninvolved people and urban areas, with mandatory operator registration and online training.

Specific and Certified Categories: For higher-risk operations beyond the Open category, including BVLOS flights or operations involving passengers or hazardous materials. These require detailed risk assessments, operational authorization, and in some cases, full certification of the drone, operator, and pilot.

Grepow Drone Power Solutions for Training and Coaching

With over 27 years of expertise in battery technology, Grepow specializes in developing and manufacturing complete power solutions—from battery cells and packs to chargers. As a trusted provider of drone power solutions (marketed under our Tattu brand), we support FPV drones, mid-sized drones, and large UAVs. We also offer OEM/ODM services tailored to your brand’s needs.

Why Choose Grepow’s Drone Power Solutions?

Versatile Options: A wide range of battery sizes and configurations, including various discharge rates (C ratings), battery packs, and smart batteries with BMS.

Advanced Stacking Technology: All our UAV batteries are manufactured using the stacking process, ensuring lower internal resistance and improved charge/discharge efficiency.

High Reliability & Automated Production: Precision engineering and automated production lines guarantee consistent quality and reliability.

Our recommended power solutions are based on current market trends in education and training institutions. If you have specific requirements, feel free to reach out—we’re here to help!

  • Industrial UAV Battery For Training

  • FPV Battery For Training

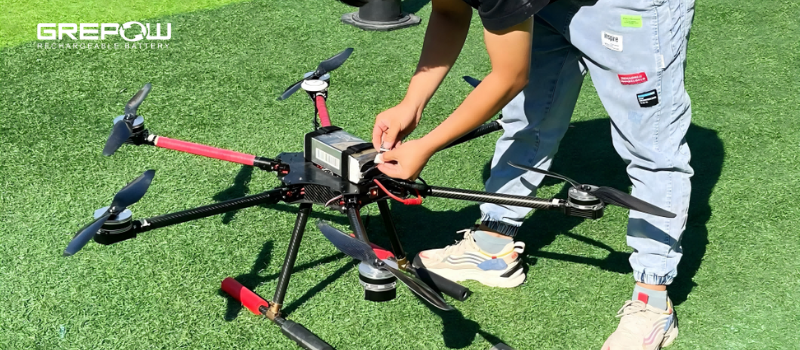

  • Industrial UAVs used for training are specialized drones designed to simulate real-world operational conditions for various industrial applications such as inspection, surveillance, and mapping. These training models help operators build their skills before handling actual mission-critical UAVs. The batteries powering these training drones should meet specific requirements:

    Deliver High Power: Provide a strong, steady output.

    Charge Quickly: Reduce downtime between sessions.

    Be Durable and Safe: Handle frequent use and protect against overcharge and overheating.

    Last Long: Offer many charge cycles.

    Stay Lightweight: Balance energy capacity with minimal weight for better flight time and agility.


    Batteries Solutions for Industrial Drone Training

    1. Standard Tattu 6S LiPo Drone Battery Solutions

    Model

    Capacity

    Nominal Voltage

    Energy

    Discharge Rate

    Weight

    Dimension(L×W×H)

    TAA100006S30E

    10000mAh

    6S1P 22.2V

    222Wh

    30C

    1350g

    176×66×58mm

    TAA120006530E

    12000mAh

    6S1P 22.2V

    266.4Wh

    30C

    1532g

    192×72×54mm

    TAA160006S30X

    16000mAh

    6S1P 22.2V

    355.2Wh

    30C

    1974g

    190×76×65mm

    TAA22000BS30X

    22000mAh

    6S1P 22.2V

    488.4Wh

    30C

    2460g

    206×91×61mm

    *Connector Options: XT30, XT60, XT90, EC5, etc.

    2. Semi-Solid State Batteries --Higher Energy Density for Longer Flight Time.

    Battery Model

    Capacity

    Rated Voltage

    Energy

    Peak Current(10C≤15S)

    Weight(±200g)

    Dimension(T×W×L)

    TARBG3017K06S10X

    17000mAh

    6S1P 22.2V

    377.4Wh

    170A

    1376g

    50.7×71.5×191.5

    TARBG2817K06S10X

    17000mAh

    6S1P 22.2V

    377.4Wh

    170A

    1490g

    55.5×71.5×187

    TARBG3022K06S10X

    22000mAh

    6S1P 22.2V

    488.4Wh

    220A

    1736g

    59.1×76.5×192

    TARBG2822K06S10X

    22000mAh

    6S1P 22.2V

    488.4Wh

    220A

    1868g

    63.9×76.5×192

    TARBG3325K06S10X

    25000mAh

    6S1P 22.2V

    555Wh

    250A

    1808g

    62.1×76.5×192

    TARBG3025K06S10X

    25000mAh

    6S1P 22.2V

    555Wh

    250A

    1964g

    51.9×91.5×207

    TARBG3526306S10X

    26300mAh

    6S1P 22.2V

    583.86Wh

    263A

    1810g

    65.1×76.5×192


    3. High Voltage Tattu 6S LiPo Drone Battery Solutions

    Model

    Capacity

    Nominal Voltage

    Energy

    Discharge Rate

    Weight

    Dimension(L×W×H)

    TAA11K6S25HVX

    11000mAh

    6S1P 22.8V

    250.8Wh

    25C

    1296g

    178×65×57mm

    TAA17K6S15XT9

    17000mAh

    6S1P 22.8V

    387.6Wh

    15C

    1857g

    192×77×60mm

    TAA23K6S25ASX

    23000mAh

    6S1P 22.8V

    524.4Wh

    25C

    2474g

    208×91×62mm

    TAA25K6S10XT9

    25000mAh

    6S1P 22.8V

    570Wh

    10C

    2542g

    208×90×65mm

    *Connector Options: XT30, XT60, XT90, EC5, etc.


    Tattu 6S LiPo Drone Battery Features

    High Capacity for Extended Flights

    High Discharge Rates for Demanding Applications

    Dual Voltage Options

    Advanced Cell Technology

    Lightweight & Energy-Dense Design


    Charger for Tattu 6S Drone Battery

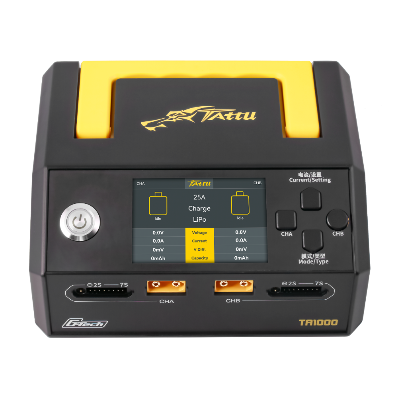

    Charger for 6S LiPo and Semi-solid State Drone Battery: TA1000 1-7S LiPo Battery Charger

    TA1000 Drone Battery Charger

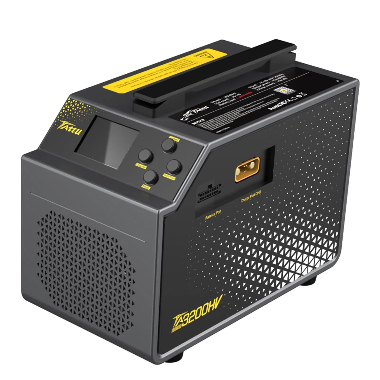

    Charger for High Voltage Tattu 6S LiPo Drone Battery: TA3200HV 6-14S LiPo Battery Charger

    TA3200HV 6-14S LiPo Battery Charger

    Discover more UAV / Drone Chargers: LiPo Battery Charger

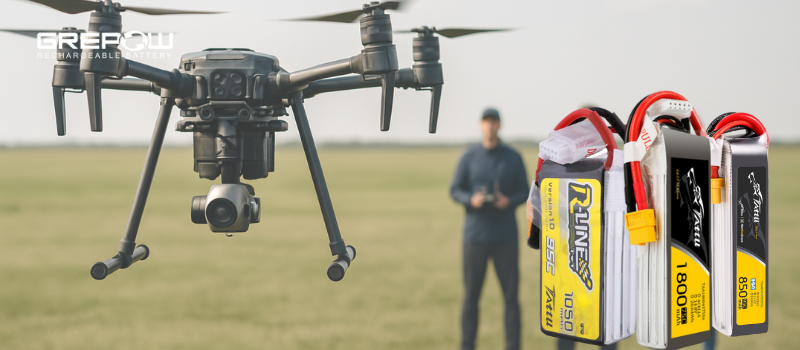

  • In FPV drone training and coaching, battery performance is crucial for maintaining smooth and consistent flight sessions. Whether you're introducing beginners to their first hover or refining advanced piloting techniques, a dependable battery is key to maximizing flight time and reducing interruptions. For coaching programs, LiPo batteries with moderate C-ratings (e.g., 45C–75C) offer an optimal balance of power delivery and longevity for extended practice. At the same time, batteries with higher discharge rates can deliver the extra speed and excitement needed to navigate challenging obstacles. Pairing these batteries with a reliable charger and adhering to proper maintenance routines further boosts their lifespan and overall performance.

    As a sub-brand of Grepow, Tattu specializes in drone power solutions, covering BMS development, battery manufacturing, product assembly, and charger production. FPV is one of Tattu’s key strengths, offering a range of batteries across three series—Standard, R-Line, and Funfly—to suit different FPV applications, including drone light shows, cinematic drones, racing drones, toothpick drones, and freestyle quads. Among them, the Tattu Standard Series is an excellent choice for racing, freestyle, education, and commercial use, delivering a great balance of performance and value—making it a top pick in the FPV community.


    Batteries Solutions for FPV Training

    Tattu 3S/4S/6S LiPo Drone Battery Solutions

    Brand & Model

    Capacity

    Nominal Voltage

    Discharge Rate

    Dimension(L×W×H)

    Weight

    Tattu Standard 3S1P

    850mAh

    11.1V

    75C

    59×30×24mm

    85g

    Tattu Standard 3S1P

    1300mAh

    11.1V

    45C

    72×35×23mm

    114g

    Tattu Standard 3S1P

    2300mAh

    11.1V

    75C

    105×33×22mm

    182g

    Tattu RLine 5.0 3S1P

    850mAh

    11.1V

    150C

    58×30×22mm

    76g

    Tattu Standard 4S1P

    450mAh

    14.8V

    75C

    65×17×17mm

    58g

    Tattu Standard 4S1P

    1050mAh

    14.8V

    75C

    71×36×26mm

    125g

    Tattu Standard 4S1P

    1800mAh

    14.8V

    75C

    106×36×25mm

    202g

    Tattu RLine 5.0 4S1P

    850mAh

    14.8V

    150C

    59×30×32mm

    100g

    Tattu RLine 5.0 4S1P

    1300mAh

    14.8V

    150C

    75×38×27mm

    156g

    Tattu RLine 5.0 6S1P

    850mAh

    22.2V

    150C

    60×30×45mm

    145g

    Tattu RLine 5.0 6S1P

    1050mAh

    22.2V

    150C

    76×38×33mm

    186g

    Tattu RLine 5.0 6S1P

    1200mAh

    22.2V

    150C

    78×39×35mm

    196g

    Tattu RLine 5.0 6S1P

    1400mAh

    22.2V

    150C

    78×38×40mm

    223g

    Tattu RLine 5.0 6S1P

    1480mAh

    22.2V

    150C

    78×39×44mm

    237g

    Tattu RLine 5.0 6S1P

    1550mAh

    22.2V

    150C

    78×37×52mm

    254g

    Tattu RLine 5.0 6S1P

    1800mAh

    22.2V

    150C

    77×38×46mm

    287g

    *Connector Options: XT30, XT60, etc.
