Surveillance drones, also known as an inspection drone, are remotely piloted aircraft used for monitoring and gathering information from the air. They are equipped with various sensors, cameras to capture data over specific areas. These drones are used in a wide range of applications, including law enforcement, agriculture, disaster response, infrastructure inspection and environmental monitoring. Surveillance drones typically use high-capacity, rechargeable lipo batteries for long flight times.
● Small size and maneuverability: Allows for discreet operation and access to confined spaces.
● Cameras and sensors: Surveillance drones are equipped with high-resolution cameras, including infrared and thermal imaging cameras, to capture detailed images and videos.
● Long flight time: Many surveillance drones have long flight times, ranging from 30 minutes to several hours, allowing for extended surveillance missions.
● Real-time data transmission: Streams live video and sensor data to a ground control station for immediate analysis.
● Security and Law Enforcement: They are used by law enforcement agencies for surveillance, search and rescue operations, and crime scene investigation.
● Search and Rescue: Locating missing persons in disaster zones or difficult terrain.

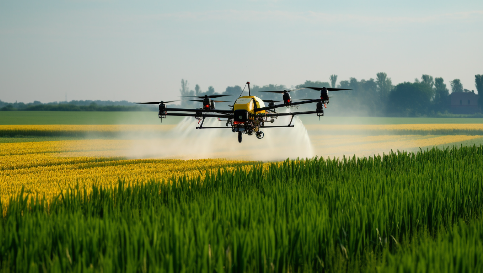

● Agriculture: Monitoring crop health, irrigation systems, and livestock.
● Disaster Relief: They are used in disaster response for damage assessment, search and rescue operations, and monitoring of disaster-affected areas.
● Infrastructure Inspection: Inspecting pipelines, power lines, and bridges for damage.
Grepow provides high-energy-density lipo batteries with fast-charging capabilities, high discharge rates, and built-in safety mechanisms to ensure long flight times and reliable performance in various environmental conditions. Compatible with all major surveillance drone brands and models on the market.
Soft Pack Surveillance Drone Battery
Smart Surveillance Drone Battery
Surveillance Drone Battery Charger
● Higher Energy Density up to 320Wh/Kg
● Support1C Charging
● Safe Discharge to 3.0V/cell
● Suit for Heavy Payload and Long Endurance Surveillance/Inspection Mission
No. | Battery Model | Dimension(±5mm) | Weight(±20g) |
1 | 186x71.5x55mm | 1444g | |
2 | 189x76x58mm | 1800g | |
3 | 191x76.5x64mm | 2250g | |
4 | 204x92x65mm | 2500g | |
5 | 206*90*65mm | 2525g | |
6 | 212*90.5*132mm | 4900g |
● High Energy Density up to 240Wh/kg
● High Voltage 4.35V/Cell
● Support 1C Charging Rate
● Safe Discharge to 3.6V/Cell
● Suit for Heavy Payload and Long Endurance Surveillance/Inspection Mission
No. | Battery Model | Dimension(±5mm) | Weight(±100g) |
1 | 176x65x56mm | 1350g | |
2 | 194x77x62mm | 1847g | |
3 | 208x90x63mm | 2473g | |
4 | 207x92x63mm | 2525g | |
5 | 216x125x61mm | 3494g | |
6 | 261x124*64mm | 4292g |
● High Energy Density up to 210Wh/Kg
● Support1C Charging Rate
● Safe Discharge to 3.6V/Cell
● Suit for Heavy Payload and Long Endurance Surveillance/Inspection Mission
No. | Battery Model | Dimension(±5mm) | Weight(±100g) |
1 | 192x77x66mm | 2000g | |
2 | 206x91x61mm | 2460g |
● Full Aluminum Metal Structure Design
● 3C-5C Fast Charge Rate
● Optimized Heat Dissipation
● Molex and AS150U-F Connector Optional
No. | Battery Model | Dimension(±5mm) | Weight(±100g) |
1 | 224x90x164mm | 4550g | |
2 | 234x116x172mm | 5750g | |
3 | 238x117x174mm | 7200g | |
4 | 238x117x174mm | 6300g | |
5 | 238x117x174mm | 7350g |
● Upgraded Frame Structure Design
● Lightweight Characteristic
● DroneCAN Protocol Enables the Compatibility of Ardupilot/PX4
● Intelligent BMS Simplify the Operation
No. | Battery Model | Dimension(±5mm) | Weight(±100g) |
1 | 152x82x220mm | 2800g | |
2 | 224x163x90mm | 4250g |
The TA1000 light show drone battery charger supports 1-7 cell LiPo and LiHV batteries, with AC input and max charging current of 25A*2, offering users more flexible charging options. Suitable for RC models, FPV, and light show drones, the TA1000 includes comprehensive protection features such as over-temperature, over-current, overcharge and reverse polaarity protection to ensure charging safety.
TA3200 is a dual-channel smart charger that can automatically identify Tattu smart battery information and achieve plug-and-charge without manual parameter setting. At the same time, the charger is also compatible with non-intelligent soft pack batteries, and you only need to simply set the charging current and mode. It has functions such as over-temperature, over-current, overcharge and disconnection protection, and monitors the battery status in real time during charging. TA3200HV is a high-voltage version and supports high-voltage lithium battery charging to 4.35V.
