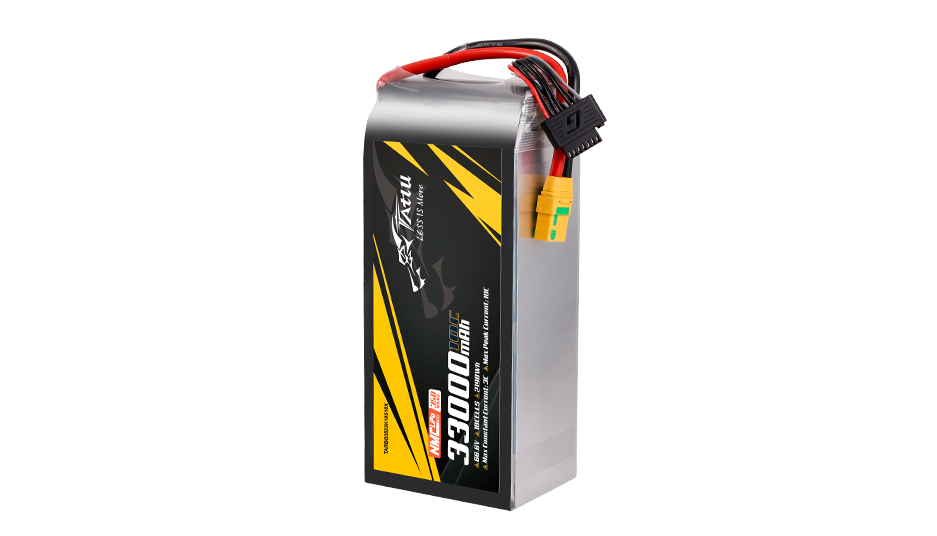

350Wh/kg Series Semi-Solid State High Energy Density Battery Pack
Battery Model | Capacity/Energy | Rated Voltage | Land-off Voltage | Dimension | Weight | Energy Density | Constant Discharge Current (3C) | Peak Current |
Tattu 26.3Ah 4S | 26.3Ah 389.24Wh | 4S 14.8V | 11.52V | 43.9×76.5×192 | 1220g | 319.05Wh/kg | 78.9A | 263A |
Tattu 33Ah 4S | 33Ah 488.4Wh | 4S 14.8V | 11.52V | 42.7×89.5×207 | 1492g | 327.35Wh/kg | 99A | 330A |
Tattu 80.4Ah 4S | 80.4Ah 1189.92Wh | 4S 14.8V | 11.52V | 43.5×151.5×287 | 3508g | 339.20Wh/kg | 241.2A | 804A |
TARBG3526306S10X | 26.3Ah 583.86Wh | 6S 22.2V | 17.28V | 65.1×76.5×192 | 1810g | 322.57Wh/kg | 78.9A | 263A |
TARBG3533K06S10X | 33Ah 273.6Wh | 6S 22.2V | 17.28V | 63.3×89.5×207 | 2216g | 330.60Wh/kg | 99A | 330A |
TARBG3580406S10X | 80.4Ah 1784.88Wh | 6S 22.2V | 17.28V | 64.5×151.5×287 | 5242g | 340.50Wh/kg | 241.2A | 804A |
Tattu 26.3Ah 8S | 26.3Ah 778.48Wh | 8S 29.6V | 23.04V | 86.3×76.5×192 | 2383g | 326.68Wh/kg | 78.9A | 263A |
Tattu 33Ah 8S | 33Ah 976.8Wh | 8S 29.6V | 23.04V | 83.9×89.5×207 | 2962g | 329.81Wh/kg | 99A | 330A |
Tattu 80.4Ah 8S | 80.4Ah 2379.84Wh | 8S 29.6V | 23.04V | 85.5×151.5×287 | 7251g | 328.21Wh/kg | 241.2A | 804A |
TARBG3526312S10X | 26.3Ah 1167.72Wh | 12S 44.4V | 34.56V | 129.7×76.5×197 | 3574g | 326.68Wh/kg | 78.9A | 263A |
TARBG3533K12S10X | 33Ah 1465.2Wh | 12S 44.4V | 34.56V | 127.1×89.5×212 | 4443g | 329.81Wh/kg | 99A | 330A |
TARBG3580412S10X | 80.4Ah 3569.76Wh | 12S 44.4V | 34.56V | 128.5×151.5×292 | 10877g | 328.21Wh/kg | 241.2A | 804A |
TARBG3526314S10X | 26.3Ah 1362.34Wh | 14S 51.8V | 40.32V | 150.9×76.5×197 | 4170g | 326.68Wh/kg | 78.9A | 263A |
TARBG3533K14S10X | 33Ah 1709.4Wh | 14S 51.8V | 40.32V | 147.7×89.5×212 | 5183g | 329.81Wh/kg | 99A | 330A |
TARBG3580414S10X | 80.4Ah 4164.72Wh | 14S 51.8V | 40.32V | 149.5×151.5×292 | 12689g | 328.21Wh/kg | 241.2A | 804A |
TARBG3526318S10X | 26.3Ah 1751.58Wh | 18S 66.6V | 51.84V | 193.3×76.5×197 | 5362g | 326.68Wh/kg | 78.9A | 263A |
TARBG3533K18S10X | 33Ah 2197.8Wh | 18S 66.6V | 51.84V | 188.9×89.5×212 | 6664g | 329.81Wh/kg | 99A | 330A |
TARBG3580418S10X | 80.4Ah 5354.64Wh | 18S 66.6V | 51.84V | 191.5×151.5×292 | 16315g | 328.21Wh/kg | 241.2A | 804A |
●Exceptional energy density up to 350wh/kg
●High-nickel cathode and silicon-carbon anode
●Supports a continuous discharge rate of 1-3C
●Customizable designs available
●Ideal for long-endurance missions with mapping or delivery applications
●Tattu TA1000 drone battery charger for 1-7S pouch cell batteries.
●Tattu TA3200 Series drone battery charger for 6-14S pouch cell batteries.
Discover more UAV / Drone Chargers: Battery Charger

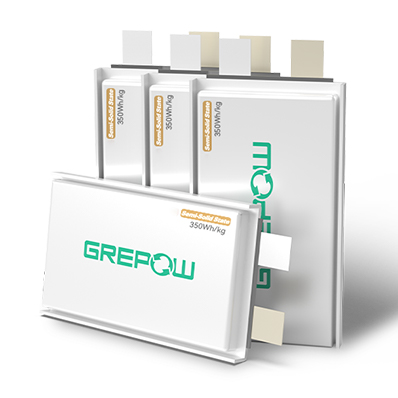

For 350Wh/kg Semi-Solid State Battery Cell Solutions:
●Voltage: 4.2V Options
●Capacity: 26.3AH, 33AH, 80.4AH Options
Grepow 350Wh/kg battery pack series is a new kind of semi-solid lipo battery with high energy density and long service life. It is suitable for a variety of medium and large drones, which always are commonly used for mapping, inspection, surveying, delivery industry etc. The advantage of lighter weight, small volume, and long flight time are fully used.
▶ Source manufacturer, physical factory, strong R&D production capacity, short delivery time and sufficient stock
▶ Self-developed battery cells, sufficient capacity, refusal of false label, guaranteed capacity
▶ Strict quality control: Construct a comprehensive quality system from parts to finished products to ensure product quality
▶ Safe and reliable: conform to various domestic and international battery certifications
▶ Perfect service system: Quickly respond to customer problems and provide solutions
▶ Instant local customer support in China, USA and Germany
You can get the following services
● Flexible support for customization
● Reliable and stable performance
● Sample and mass production available
● OEM and ODM services are available
