330Wh/kg Series Semi-Solid State High Energy Density Battery Pack
Battery Model | Capacity/Energy | Rated Voltage | Land-off Voltage | Dimension | Weight | Energy Density | Constant Discharge Current (3C) | Peak Current |

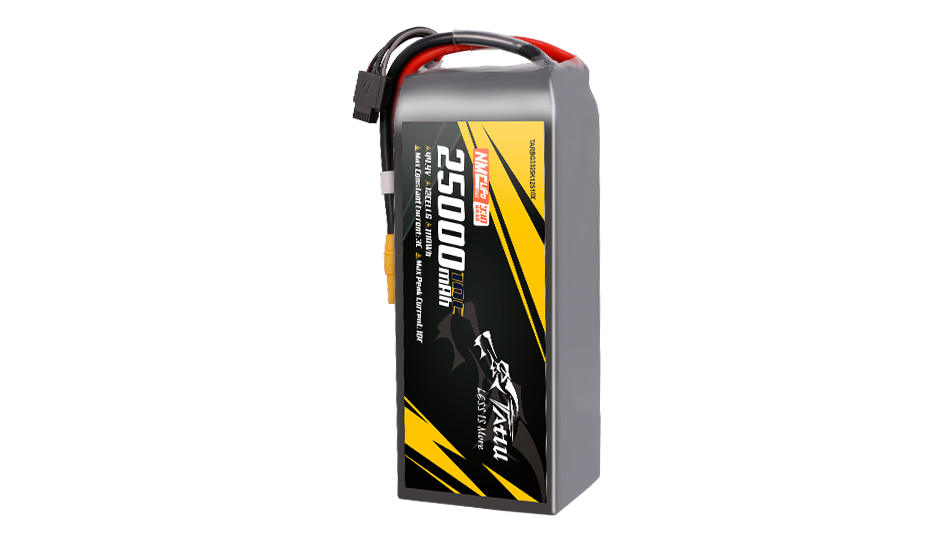

Tattu 25Ah 4S | 25Ah 370Wh | 4S 14.8V | 11.8V | 41.9×76.5×192 | 1220g | 303.28Wh/kg | 75A | 250A |
Tattu 33Ah 4S | 33Ah 488.4Wh | 4S 14.8V | 11.8V | 41.9×91.5×207 | 1564g | 312.28Wh/kg | 99A | 330A |
Tattu 76Ah 4S | 76Ah 1124.8Wh | 4S 14.8V | 11.8V | 41.5×151.5×287 | 3508g | 320.64Wh/kg | 228A | 760A |
TARBG3325K06S10X | 25Ah 555Wh | 6S 22.2V | 17.7V | 62.1×76.5×192 | 1808g | 306.97Wh/kg | 75A | 250A |
TARBG3333K06S10X | 33Ah 732.6Wh | 6S 22.2V | 17.7V | 62.1×91.5×207 | 2324g | 315.23Wh/kg | 99A | 330A |
TARBG3376K12S10X | 76Ah 1687.2Wh | 6S 22.2V | 17.7V | 61.5×151.5×287 | 5240g | 321.98Wh/kg | 228A | 760A |
Tattu 25Ah 8S | 25Ah 740Wh | 8S 29.6V | 23.6V | 82.3×76.5×192 | 2383g | 310.54Wh/kg | 75A | 250A |
Tattu 33Ah 8S | 33Ah 976.8Wh | 8S 29.6V | 23.6V | 82.3×91.5×207 | 3115g | 313.59Wh/kg | 99A | 330A |
Tattu 76Ah 8S | 76Ah 2249.6Wh | 8S 29.6V | 23.6V | 81.5×151.5×287 | 7251g | 310.24Wh/kg | 228A | 760A |
TARBG3325K12S10X | 25Ah 1110Wh | 12S 44.4V | 35.4V | 124.7×76.5×197 | 3574g | 310.54Wh/kg | 75A | 250A |
TARBG3333K12S10X | 33Ah 1465.2Wh | 12S 44.4V | 35.4V | 124.7×91.5×212 | 4672g | 313.59Wh/kg | 99A | 330A |
TARBG3376K12S10X | 76Ah 3374.4Wh | 12S 44.4V | 35.4V | 123.5×151.5×292 | 10877g | 310.24Wh/kg | 228A | 760A |
TARBG3325K14S10X | 25Ah 1295Wh | 14S 51.8V | 41.3V | 144.9×76.5×197 | 4170g | 310.54Wh/kg | 75A | 250A |
TARBG3333K14S10X | 33Ah 1709.4Wh | 14S 51.8V | 41.3V | 144.9×91.5×212 | 5451g | 313.59Wh/kg | 99A | 330A |
TARBG3376K14S10X | 76Ah 3936.8Wh | 14S 51.8V | 41.3V | 143.5×151.5×292 | 12689g | 310.24Wh/kg | 228A | 760A |
TARBG3325K18S10X | 25Ah 1665Wh | 18S 66.6V | 53.1V | 185.3×76.5×197 | 5362g | 310.54Wh/kg | 75A | 250A |
TARBG3333K18S10X | 33Ah 2197.8Wh | 18S 66.6V | 53.1V | 185.3×91.5×212 | 7009g | 313.59Wh/kg | 99A | 330A |
TARBG3376K18S10X | 76Ah 5061.6Wh | 18S 66.6V | 53.1V | 183.5×151.5×292 | 16315g | 310.24Wh/kg | 228A | 760A |
●Exceptional energy density up to 330wh/kg
●High-nickel cathode and silicon-carbon anode
●Supports a continuous discharge rate of 1-3C
●Customizable designs available
●Ideal for long-endurance missions with mapping or delivery applications
●Tattu TA1000 drone battery charger for 1-7S pouch cell batteries.
●Tattu TA3200 Series drone battery charger for 6-14S pouch cell batteries.
Discover more UAV / Drone Chargers: Battery Charger

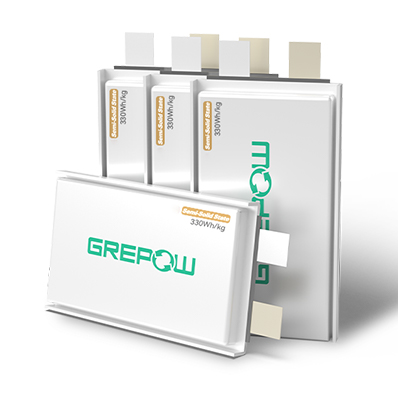

For 330Wh/kg Semi-Solid State Battery Cell Solutions:
●Voltage: 4.2V Options
●Capacity: 25AH, 33AH, 76AH Options
Grepow 330Wh/kg battery pack series is a new kind of semi-solid lipo battery with high energy density and long service life. It is suitable for a variety of medium and large drones, which always are commonly used for mapping, inspection, surveying, delivery industry etc. The advantage of lighter weight, small volume, and long flight time are fully used.
▶ Source manufacturer, physical factory, strong R&D production capacity, short delivery time and sufficient stock
▶ Self-developed battery cells, sufficient capacity, refusal of false label, guaranteed capacity
▶ Strict quality control: Construct a comprehensive quality system from parts to finished products to ensure product quality
▶ Safe and reliable: conform to various domestic and international battery certifications
▶ Perfect service system: Quickly respond to customer problems and provide solutions
▶ Instant local customer support in China, USA and Germany
You can get the following services
● Flexible support for customization
● Reliable and stable performance
● Sample and mass production available
● OEM and ODM services are available
