300Wh/kg Series Semi-Solid State High Energy Density Battery Pack
Battery Model | Capacity/Energy | Rated Voltage | Land-off Voltage | Dimension | Weight (±200g) | Energy Density | Constant Discharge Current (3C) | Peak Current (10C≤15S) |
Tattu 17Ah 4S | 17Ah 251.6Wh | 4S 14.8V | 12.2V | 34.3×71.5×191.5 | 932g | 269.96Wh/kg | 51A | 170A |
Tattu 22Ah 4S | 22Ah 325.6Wh | 4S 14.8V | 12.2V | 39.9×76.5×192 | 1172g | 277.82Wh/kg | 66A | 220A |
Tattu 25Ah 4S | 25Ah 370Wh | 4S 14.8V | 12.2V | 35.1×91.5×207 | 1324g | 279.46Wh/kg | 75A | 250A |
Tattu 30Ah 4S | 30Ah 444Wh | 4S 14.8V | 12.2V | 41.9×91.5×207 | 1564g | 283.89Wh/kg | 90A | 300A |

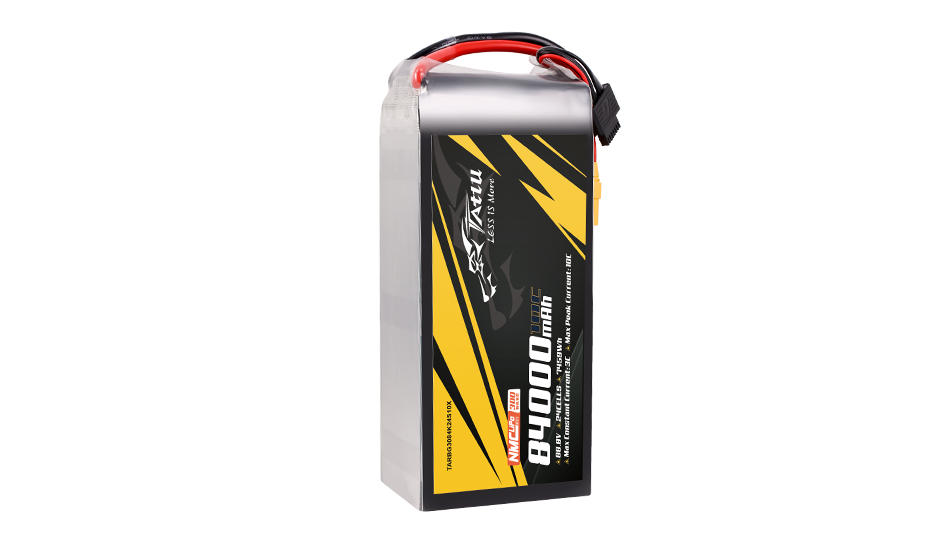

Tattu 84Ah 4S | 84Ah 1243.2Wh | 4S 14.8V | 12.2V | 50.3×151.5×287 | 4260g | 291.83Wh/kg | 252A | 840A |
TARBG3017K06S10X | 17Ah 377.4Wh | 6S 22.2V | 18.3V | 50.7×71.5×191.5 | 1376g | 274.27Wh/kg | 51A | 170A |
TARBG3022K06S10X | 22Ah 488.4Wh | 6S 22.2V | 18.3V | 59.1×76.5×192 | 1736g | 281.34Wh/kg | 66A | 220A |
TARBG3025K06S10X | 25Ah 555Wh | 6S 22.2V | 18.3V | 51.9×91.5×207 | 1964g | 282.59Wh/kg | 75A | 250A |
TARBG3030K06S10X | 30Ah 666Wh | 6S 22.2V | 18.3V | 62.1×91.5×207 | 2324g | 286.57Wh/kg | 90A | 300A |
Tattu 84Ah 6S | 84Ah 1864.8Wh | 6S 22.2V | 18.3V | 74.7×151.5×287 | 6368g | 292.84Wh/kg | 252A | 840A |
Tattu 17Ah 8S | 17Ah 503.2Wh | 8S 29.6V | 24.4V | 67.1×71.5×191.5 | 1770g | 284.26Wh/kg | 51A | 170A |
Tattu 22Ah 8S | 22Ah 651.2Wh | 8S 29.6V | 24.4V | 78.3×76.5×192 | 2281g | 285.51Wh/kg | 66A | 220A |
Tattu 25Ah 8S | 25Ah 740Wh | 8S 29.6V | 24.4V | 68.7×91.5×207 | 2604g | 284.15Wh/kg | 75A | 250A |
Tattu 30Ah 8S | 30Ah 888Wh | 8S 29.6V | 24.4V | 82.3×91.5×207 | 3115g | 285.08Wh/kg | 90A | 300A |
Tattu 84Ah 8S | 84Ah 2486.4Wh | 8S 29.6V | 24.4V | 99.1×151.5×287 | 8851g | 280.92Wh/kg | 252A | 840A |
TARBG3017K12S10X | 17Ah 754.8Wh | 12S 44.4V | 36.6V | 101.9×71.5×196.5 | 2655g | 284.26Wh/kg | 51A | 170A |
TARBG3022K12S10X | 22Ah 976.8Wh | 12S 44.4V | 36.6V | 118.7×76.5×197 | 3421g | 285.51Wh/kg | 66A | 220A |
TARBG3025K12S10X | 25AH 1110Wh | 12S 44.4V | 36.6V | 104.3×91.5×212 | 3906g | 284.15Wh/kg | 75A | 250A |
TARBG3030K12S10X | 30Ah 1332Wh | 12S 44.4V | 36.6V | 124.7×91.5×212 | 4672g | 285.08Wh/kg | 90A | 300A |
Tattu 84Ah 12S | 84Ah 3729.6Wh | 12S 44.4V | 36.6V | 149.9×151.5×292 | 13277g | 280.92Wh/kg | 252A | 840A |
TARBG3017K14S10X | 17Ah 880.6Wh | 14S 51.8V | 42.7V | 118.3×71.5×196.5 | 3098g | 284.26Wh/kg | 51A | 170A |
TARBG3022K14S10X | 22Ah 1139.6Wh | 14S 51.8V | 42.7V | 137.9×76.5×197 | 3991g | 285.51Wh/kg | 66A | 220A |
TARBG3025K14S10X | 25Ah 1295Wh | 14S 51.8V | 42.7V | 121.1×91.5×212 | 4557g | 284.15Wh/kg | 75A | 250A |
TARBG3030K14S10X | 30Ah 1554Wh | 14S 51.8V | 42.7V | 144.9×91.5×212 | 5451g | 285.08Wh/kg | 90A | 300A |
TARBG3084K14S10X | 84Ah 4351.2Wh | 14S 51.8V | 42.7V | 174.3×151.5×292 | 15489g | 280.92Wh/kg | 252A | 840A |
TARBG3017K18S10X | 17Ah 1132.2Wh | 18S 66.6V | 54.9V | 151.1×71.5×196.5 | 3983g | 284.26Wh/kg | 51A | 170A |
TARBG3022K18S10X | 22Ah 1465.2Wh | 18S 66.6V | 54.9V | 176.3×76.5×197 | 5132g | 285.51Wh/kg | 66A | 220A |
TARBG3025K18S10X | 25Ah 1665Wh | 18S 66.6V | 54.9V | 154.7×91.5×212 | 5860g | 284.15Wh/kg | 75A | 250A |
TARBG3030K18S10X | 30Ah 1998Wh | 18S 66.6V | 54.9V | 185.3×91.5×212 | 7009g | 285.08Wh/kg | 90A | 300A |
TARBG3084K18S10X | 84Ah 5594.4Wh | 18S 66.6V | 54.9V | 223.1×151.5×292 | 19915g | 280.92Wh/kg | 252A | 840A |
TARBG3017K24S10X | 17Ah 1509.6Wh | 24S 88.8V | 73.2V | 200.3×71.5×196.5 | 5311g | 284.26Wh/kg | 51A | 170A |
TARBG3022K24S10X | 22Ah 1953.6Wh | 24S 88.8V | 73.2V | 233.9×76.5×197 | 6843g | 285.51Wh/kg | 66A | 220A |
TARBG3025K24S10X | 25Ah 2220Wh | 24S 88.8V | 73.2V | 205.1×91.5×212 | 7813g | 284.15Wh/kg | 75A | 250A |
TARBG3030K24S10X | 30Ah 2664Wh | 24S 88.8V | 73.2V | 245.9×91.5×212 | 9345g | 285.00Wh/kg | 90A | 300A |
TARBG3084K24S10X | 84Ah 7459.2Wh | 24S 88.8V | 73.2V | 296.3×151.5×292 | 26553g | 280.92Wh/kg | 252A | 840A |
●Exceptional energy density up to 300wh/kg
●High-nickel cathode and silicon-carbon anode
●Supports a continuous discharge rate of 1-3C
●Customizable designs available
●Ideal for long-endurance missions with mapping or delivery applications
●Tattu TA1000 drone battery charger for 1-7S pouch cell batteries.
●Tattu TA3200 Series drone battery charger for 6-14S pouch cell batteries.
Discover more UAV / Drone Chargers: Battery Charger

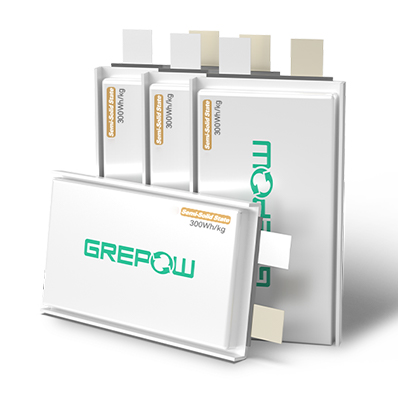

For 300Wh/kg Semi-Solid State Battery Cell Solutions:
●Voltage: 4.2V Options
●Capacity: 17AH, 22AH, 25AH, 30AH, 84AH Options
Grepow 300Wh/kg battery pack series is a new kind of semi-solid lipo battery with high energy density and long service life. It is suitable for a variety of medium and large drones, which always are commonly used for mapping, inspection, surveying, delivery industry etc. The advantage of lighter weight, small volume, and long flight time are fully used.
▶ Source manufacturer, physical factory, strong R&D production capacity, short delivery time, and sufficient stock
▶ Self-developed battery cells, sufficient capacity, refusal of false labels, guaranteed capacity
▶ Strict quality control: Construct a comprehensive quality system from parts to finished products to ensure product quality
▶ Safe and reliable: conform to various domestic and international battery certifications
▶ Perfect service system: Quickly respond to customer problems and provide solutions
▶ Instant local customer support in China, USA, and Germany
You can get the following services
● Flexible support for customization
● Reliable and stable performance
● Sample and mass production available
● OEM and ODM services are available
