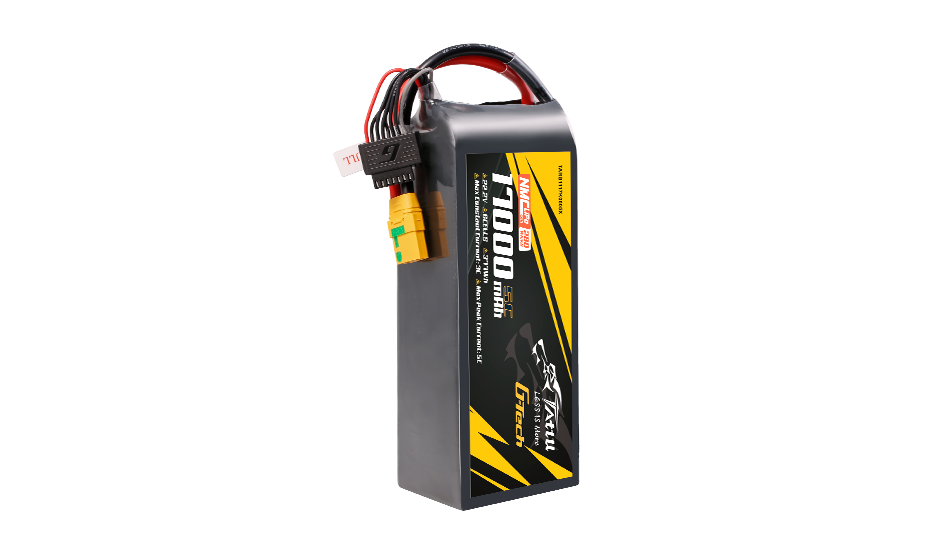

280Wh/kg Series Semi-Solid State High Energy Density Battery Pack
Battery Model | Capacity/Energy | Rated Voltage | Land-off Voltage | Dimension (T×W×L ±5mm) | Weight (±200g) | Energy Density | Constant Discharge Current (3C) | Peak Current (10C≤15S) |
Tattu 17Ah 4S | 17Ah 251.6Wh | 4S 14.8V | 12.4V | 37.5×71.5×187 | 1008g | 249.60Wh/kg | 51A | 170A |
Tattu 22Ah 4S | 22Ah 325.6Wh | 4S 14.8V | 12.4V | 43.1×76.5×192 | 1260g | 258.41Wh/kg | 66A | 220A |
Tattu 30Ah 4S | 30Ah 444Wh | 4S 14.8V | 12.4V | 45.5×89.5×205 | 1684g | 263.66Wh/kg | 90A | 300A |
TARBG2817K06S10X | 17Ah 377.4Wh | 6S 22.2V | 18.6V | 55.5×71.5×187 | 1490g | 253.29Wh/kg | 51A | 170A |
TARBG2822K06S10X | 22Ah 488.4Wh | 6S 22.2V | 18.6V | 63.9×76.5×192 | 1868g | 261.46Wh/kg | 66A | 220A |
TARBG2830K06S10X | 30Ah 666Wh | 6S 22.2V | 18.6V | 67.5×89.5×205 | 2504g | 265.97Wh/kg | 90A | 300A |
Tattu 17Ah 8S | 17Ah 503.2Wh | 8S 29.6V | 24.8V | 73.5×71.5×187 | 1932g | 260.47Wh/kg | 51A | 170A |
Tattu 22Ah 8S | 22Ah 651.2Wh | 8S 29.6V | 24.8V | 84.7×76.5×192 | 2468g | 263.85Wh/kg | 66A | 220A |
Tattu 30Ah 8S | 30Ah 888Wh | 8S 29.6V | 24.8V | 89.5×89.5×205 | 3370g | 263.48Wh/kg | 90A | 300A |
TARBG2817K12S10X | 17Ah 754.8Wh | 12S 44.4V | 37.2V | 111.5×71.5×192 | 2898g | 260.47Wh/kg | 51A | 170A |
TARBG2822K12S10X | 22Ah 976.8 | 12S 44.4V | 37.2V | 128.3×76.5×197 | 3702g | 263.85Wh/kg | 66A | 220A |
TARBG2830K12S10X | 30Ah 1332Wh | 12S 44.4V | 37.2V | 135.5×89.5×210 | 5055g | 263.48Wh/kg | 90A | 300A |
TARBG2817K14S10X | 17Ah 880.6Wh | 14S 51.8V | 43.4V | 129.5×71.5×192 | 3381g | 260.47Wh/kg | 51A | 170A |
TARBG2822K14S10X | 22Ah 1139.6Wh | 14S 51.8V | 43.4V | 149.1×76.5×197 | 4319g | 263.85Wh/kg | 66A | 220A |
TARBG2830K14S10X | 30Ah 1554Wh | 14S 51.8V | 43.4V | 157.5×89.5×210 | 5898g | 263.48Wh/kg | 90A | 300A |
TARBG2817K18S10X | 17Ah 1132.2Wh | 18S 66.6V | 55.8V | 165.5×71.5×192 | 4347g | 260.47Wh/kg | 51A | 170A |
TARBG2822K18S10X | 22Ah 1465.2Wh | 18S 66.6V | 55.8V | 190.7×76.5×197 | 5553g | 263.85Wh/kg | 66A | 220A |
TARBG2830K18S10X | 30Ah 1998Wh | 18S 66.6V | 55.8V | 201.5×89.5×210 | 7583g | 263.48Wh/kg | 90A | 300A |
*Connector Options: XT60, XT90, AS150U, QS5, QS8, QS9, QS10, AS250, AS150, etc.
●Exceptional energy density up to 280wh/kg
●High-nickel cathode and silicon-carbon anode
●Supports a continuous discharge rate of 1-3C
●Customizable designs available
●Ideal for long-endurance missions with mapping or delivery applications
●Tattu TA1000 drone battery charger for 1-7S pouch cell batteries.

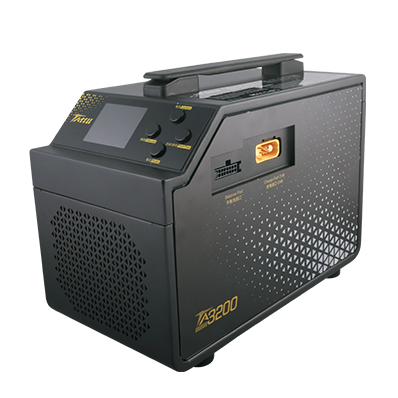

●Tattu TA3200 Series drone battery charger for 6-14S pouch cell batteries.
Discover more UAV / Drone Chargers: Battery Charger

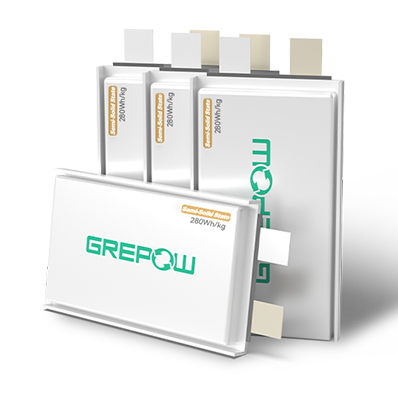

For 280Wh/kg Semi-Solid State Battery Cell Solutions:
●Voltage: 4.2V Options
●Capacity: 17AH, 22AH, 30AH Options
Grepow 280Wh/kg battery pack series is a new kind of semi-solid lipo battery with high energy density and long service life. It is suitable for a variety of medium and large drones, commonly used for mapping, inspection, surveying, delivery industry, etc. The advantages of lighter weight, small volume, and long flight time are fully utilized.
▶ Source manufacturer, physical factory, strong R&D production capacity, short delivery time, and sufficient stock
▶ Self-developed battery cells, sufficient capacity, refusal of false labels, guaranteed capacity
▶ Strict quality control: Construct a comprehensive quality system from parts to finished products to ensure product quality
▶ Safe and reliable: conform to various domestic and international battery certifications
▶ Perfect service system: Quickly respond to customer problems and provide solutions
▶ Instant local customer support in China, USA, and Germany
You can get the following services
● Flexible support for customization
● Reliable and stable performance
● Sample and mass production available
● OEM and ODM services are available
