Bionic Robot

Bionic Robot

A bionic robot is a machine designed to imitate biological organisms, mimicking their movements, structures, or functions by combining advanced materials, sensors, and artificial intelligence. Potential applications for bionic robots include search and rescue operations, healthcare, manufacturing, and even companionship. The development of bionic robots focuses on improving their biomimetic accuracy, integrating AI for autonomy, and reducing size and weight for specialized applications. As technology continues to advance, bionic robots have the potential to revolutionize numerous industries and improve the quality of life for humans.

Bionic Robot Types and Battery Requirements

Bionic robots, also known as biomimetic robots, are designed to imitate the forms, movements, or functions of living organisms. These robots include categories like multi-legged robots (e.g., inspired by insects or crabs), flapping-wing robots (modeled after birds or bats), and underwater robots (mimicking fish or marine animals). Their applications span diverse fields such as environmental monitoring, exploration, search-and-rescue operations, and aquaculture. These robots typically utilize lithium-ion batteries, known for their high energy density and long lifespan. On the other hand, smaller, more specialized bionic robots, such as those used in medical applications, may rely on smaller, lightweight batteries like lithium-polymer.

Advantages of Using Rechargeable Lipo/Li-ion Batteries In Bionic Robot

High Energy Density: Li-ion and LiPo batteries pack a significant amount of energy into a small, lightweight package, making them ideal for powering the complex movements and sensors of bionic robots. This high energy density allows for longer operating times without frequent recharging.

Rechargeable: These batteries can be recharged multiple times, reducing the need for frequent battery replacements and minimizing environmental impact.

High Power Density: Li-ion and LiPo batteries can deliver high amounts of power, enabling bionic robots to perform demanding tasks that require rapid bursts of energy.

Long Cycle Life: These batteries can withstand numerous charge-discharge cycles before their capacity significantly degrades, ensuring a long lifespan for the bionic robot.

Grepow Bionic Robot Battery Solutions

Grepow offers specialized battery solutions for bionic robots, including high-performance options like high discharge rate batteries and semi-solid state batteries. Our High Discharge Rate Battery, with a discharge capability of up to 50C, supports the quick and dynamic movements needed for complex robotic tasks. Additionally, Grepow's semi-solid state batteries boast an energy density of up to 350 Wh/kg, allowing for more power in smaller and lighter packages, which enhances the mobility of bionic devices. We also provide custom-shaped batteries in various designs, such as rectangular or curved, ensuring a perfect fit for different robotic configurations. This customization helps meet the specific energy needs of various bionic applications, making Grepow's innovative battery technologies crucial for advancing bionic robotics.


  • High Discharge Rate Battery

  • Semi-Solid State Battery

  • Customizable Shaped Pouch Lipo Cell

  • Grepow can provide high-rate batteries with a discharge rate of up to 50C by combining advanced electrode materials, such as high-conductivity carbon, with a multi-layered electrode design that maximizes surface area for efficient energy transfer, while minimizing internal resistance and employing sophisticated thermal management techniques to prevent overheating, ensuring that the batteries deliver rapid, consistent power output to meet the demanding, high-performance needs of humanoid robots in dynamic environments.

    Model NO.

    C-Rate

    Nom. Voltage

    Capacity

    Max. Cont. Discharge Current

    Thickness (mm)

    Width (mm)

    Length (mm)

    Weight (g)

    GRP3722097

    45C

    3.7V

    550mAh

    24.75Ah

    3.5±0.2

    22.0±1.0

    96.5±1.0

    15.0±1.5

    GRP5519096

    45C

    3.7V

    750mAh

    32Ah

    5.3±0.2

    19.0±1.0

    97.0±1.0

    20.0±1.5

    GRP7018055

    40C

    3.7V

    520mAh

    20.8A

    6.7±0.3

    18.0±0.5

    55.0±0.5

    12.8±1.0

    GRP7330048

    35C

    3.7V

    800mAh

    28A

    7.0±0.3

    29.5±1.0

    49.5±1.0

    21.0±1.5

    GRP6723042

    30C

    3.7V

    500mAh

    15A

    6.3±0.3

    23.0±0.5

    42.5±0.5

    11.5±1.0

    GRP8924048

    30C

    3.7V

    850mAh

    25.5A

    6.3±0.3

    24.0±0.5

    49.0±0.5

    19.0±1.0

    GRP6216054

    25C

    3.7V

    450mAh

    11.25A

    5.9±0.3

    16.0±0.5

    56.0±0.5

    10.5±1.0

    GRP5017095

    25C

    3.7V

    700mAh

    17.5A

    4.8±0.2

    16.5±1.0

    95.5±1.0

    15.0±1.0

    GRP5530048

    20C

    3.7V

    650mAh

    13A

    4.7±0.2

    30.0±0.5

    49.5±0.5

    14.5±1.0

    GRP6024064

    20C

    3.7V

    850mAh

    17A

    5.7±0.2

    24.0±1.0

    64.5±1.0

    18.0±1.5

  • Grepow's high energy density semi-solid-state battery uses advanced high-nickel NMC cathode materials, silicon-carbon anode materials, and coated diaphragm technology, with a maximum energy density of up to 350 Wh/kg. This makes it an excellent choice for applications requiring lightweight and high-performance power sources, such as drones, robots, and consumer electronics where weight is a critical factor.


    Model NO.

    C-Rate

    Nom. Voltage

    Capacity

    Max Cont. Discharge Current

    Thickness (mm)

    Width (mm)

    Length (mm)

    Weight (g)

    GRP6542126

    5C

    3.7V

    5000mAh

    15A

    6.3±0.2

    41.5±1.0

    126.5±1.0

    70.0±3.0

    GRP9840121

    5C

    3.7V

    7200mAh

    21.6A

    9.5±0.3

    39.5±1.0

    121.5±1.0

    100.0±3.0

    GRP8272160

    5C

    3.7V

    14200mAh

    42.6A

    7.9±0.3

    71.5±1.0

    159.5±1.0

    196.0±5.0

    GRP6890190

    5C

    3.7V

    17600mAh

    52.8A

    6.6±0.2

    89.5±1.0

    189.0±1.0

    241.0±5.0

    GRP5564096

    10C

    3.7V

    4400mAh

    13.2A

    5.3±0.2

    63.5±1.0

    97.0±1.0

    67.0±3.0

    GRP8664159

    10C

    3.7V

    12000mAh

    36A

    8.3±0.3

    63.5±1.0

    158.0±1.0

    177.0±5.0

    GRP8675175

    10C

    3.7V

    16000mAh

    48A

    8.3±0.3

    74.5±1.0

    174.5±1.0

    235.0±5.0

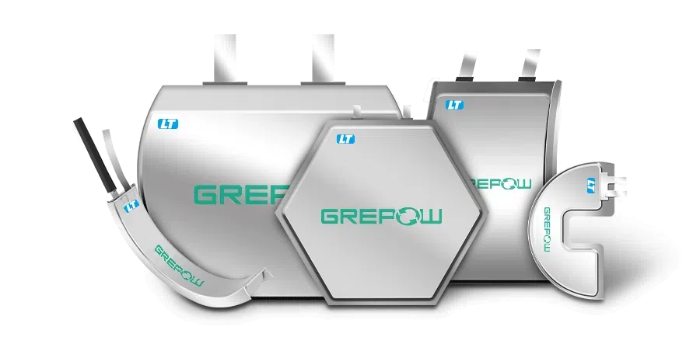

  • Grepow offers a range of shaped pouch batteries that are perfectly suited to various terminal device shapes. We provide custom shaped Lithium-Ion pouch batteries as thin as 0.5mm and as narrow as 4.1mm. Available shapes include cruved, round, L-shaped, D-shaped, and C-shaped, ect. Grepow's shaped pouch batteries boast excellent performance and a cycle life of over 1000 cycles, operating within a temperature range of -50°C to 50°C / -40°C to 60°C, and can achieve fast charging at up to 5C.

    Shaped Pouch Lipo Battery Cell

    Shaped Pouch Lipo Battery Cell Models

    Model NO.

    Full-Charged Voltage

     C rate

    Capacity

    Thickness

    Width

    Length

    Pouch Ultra Thin Lipo Battery

    4.2/4.35V

    1C

    7.5-140mAh

    0.5-0.85mm

    15-49mm

    34.3-55.5mm

    Pouch Ultra Narrow Lipo Battery

    4.2/4.35/4.4V

    1-30C

    13-430mAh

    1.6-7.87mm

    6.5-11mm

    13-60.8mm

    Pouch Curved Lipo Battery

    4.2/4.35/4.4V

    1-10C

    5.7-1660mAh

    0.65-8.9mm

    5.8-50mm

    18.95-52.14mm

    Pouch Round Lipo Battery

    4.2/4.35/4.4V

    1-15C

    62-2120mAh

    7.5-2.3mm

    12-64.7mm

    15.5-54.64mm

    Pouch L Shaped Lipo Battery

    4.2/4.35V

    5-8C

    1000-2125mAh

    5.7-6.55mm

    25.7-84.61mm

    48.5-73.7mm

    Pouch Rectangular Lipo Battery

    4.2/4.35/4.4/4.45/4.8V

    1-45C

    7.5-4200mAh

    0.5-11.8mm

    6.5-50mm

    12-88.5mm

    Pouch D Shaped Lipo Battery

    4.35/4.4/V

    1C

    30-685mAh

    2.45-5.7mm

    10.2-34.3mm

    12.2-48mm

    Pouch C Shaped Lipo Battery

    4.2V

    1C

    290mAh

    5.95mm

    29.5mm

    32.66mm

    Pouch Irregular Lipo Battery

    4.2/4.35V

    1-3C

    50-1800mAh

    1.95-5.52mm

    18.8-34.3mm

    19.7-95.89mm

    Pouch Bottle shape Lipo Battery

    4.35V

    15C

    505mAh

    6.4mm

    26.44mm

    37mm

    Pouch Octagon Lipo Battery

    4.2V

    5C

    605mAh

    4.58mm

    18.9mm

    71.95mm

    Pouch Ring shape Lipo Battery

    4.4V

    3C

    200mAh

    3mm

    38.2mm

    30mm

    Pouch Stepped shape Lipo Battery

    4.35/4.4V

    1/5C

    245/415mAh

    3.57/7.4mm

    20.79/37.2mm

    31.89/34.64mm

    Pouch Trapezoid Lipo Battery

    4.4V

    1/5C

    95/370mAh

    2.17/5.88mm

    24.49/32.28mm

    17/27.45mm

    Pouch U shape Lipo Battery

    4.2/4.35/4.4V

    1-5C

    165-750mAh

    3.15-6.94mm

    22.24-34.6mm

    21.55-31.97mm
