Model NO. | C-Rate | Nom. Voltage | Capacity | Max Cont. Discharge Current | Thickness (mm) | Width (mm) | Length (mm) | Weight (g) |
GRP6333070 | 5C | 3.8V | 1700mAh | 8.5A | 6.0±0.2 | 33±1.0 | 70±1.0 | 28.0±2.0 |
GRP2930265 | 5C | 3.8V | 2200mAh | 11A | 2.7±0.2 | 29.5±1.0 | 265.5±1.0 | 39.0±1.5 |
GRP4938130 | 5C | 3.8V | 3000mAh | 15A | 4.6±0.2 | 37.5±1.0 | 129±1.0 | 48.0±2.0 |
GRP8840078 | 5C | 3.8V | 3450mAh | 17.25A | 8.5±0.3 | 39.5±1.0 | 78.5±1.0 | 55.0±2.0 |
GRP8933100 | 5C | 3.8V | 4000mAh | 20A | 8.7±0.3 | 32±1.0 | 99.5±1.0 | 60.0±2.0 |
GRP8949080 | 5C | 3.8V | 4600mAh | 23A | 8.6±0.3 | 48.5±1.0 | 80±1.0 | 73.0±2.0 |
GRP9268071 | 5C | 3.8V | 5500mAh | 27.5A | 8.8±0.3 | 67±1.0 | 70±1.0 | 87.0±3.0 |
GRP8342126 | 5C | 3.8V | 5950mAh | 29.75A | 8.1±0.3 | 41.5±1.0 | 127.0±1.0 | 95.5±3.0 |
GRP9968071 | 5C | 3.8V | 6000mAh | 30A | 9.5±0.3 | 67±1.0 | 70±1.0 | 95.0±3.0 |
GRP9267109 | 5C | 3.8V | 9000mAh | 27A | 8.9±0.3 | 66.5±1.0 | 108.5±1.0 | 142.0±5.0 |
GRPB242126 | 5C | 3.8V | 9600mAh | 40A | 10.9±0.3 | 42.0±1.0 | 127.0±1.0 | 142.5±3.0 |
GRP8570175 | 5C | 3.8V | 13800mAh | 41.4A | 8.3±0.3 | 69.0±1.0 | 173.5±1.0 | 217.0±5.0 |
GRPA864159 | 5C | 3.8V | 15000mAh | 30A | 10.5±0.3 | 63.5±1.0 | 158.0±1.0 | 232.0±5.0 |
GRPA875150 | 5C | 3.8V | 16000mAh | 32A | 10.5±0.3 | 74.0±1.0 | 150.0±1.0 | 260.0±5.0 |
GRPA575175 | 5C | 3.8V | 18000mAh | 36A | 10.1±0.3 | 74.0±1.0 | 174.0±1.0 | 284.0±5.0 |
GRP7874240 | 5C | 3.8V | 18500mAh | 37A | 7.3±0.3 | 73.5±1.0 | 239.0±1.0 | 290.0±5.0 |
GRP7698225 | 5C | 3.8V | 22000mAh | 44A | 7.3±0.3 | 97.0±1.0 | 224.0±1.0 | 348.0±10.0 |
GRP9890190 | 5C | 3.8V | 22500mAh | 45A | 9.5±0.3 | 89.0±1.0 | 189.0±1.0 | 355.0±5.0 |
GRP83C0185 | 5C | 3.8V | 24000mAh | 48A | 8.0±0.3 | 119.0±1.0 | 184.5±1.0 | 375.0±10.0 |
GRPA690190 | 5C | 3.8V | 24500mAh | 49A | 10.3±0.3 | 89.5±1.0 | 189.5±1.0 | 377.0±10.0 |
GRPA895183 | 5C | 3.8V | 26000mAh | 52A | 10.4±0.3 | 94.0±1.0 | 182.0±1.0 | 398.0±10.0 |
GRP95C0185 | 5C | 3.8V | 28000mAh | 56A | 9.1±0.3 | 119.0±1.0 | 184.0±1.0 | 438.0±10.0 |
GRPA590215 | 5C | 3.8V | 28200mAh | 56.4A | 10.1±0.3 | 89.0±1.0 | 214.0±1.0 | 433.0±10.0 |
GRP91A6213 | 5C | 3.8V | 28500mAh | 57A | 8.8±0.3 | 105.5±1.0 | 212.5±1.0 | 430.0±10.0 |
GRPA695210 | 5C | 3.8V | 29000mAh | 58A | 10.3±0.3 | 94.5±1.0 | 209.0±1.0 | 445.0±10.0 |
GRPB090215 | 5C | 3.8V | 30000mAh | 60A | 10.7±0.3 | 89.0±1.0 | 214.0±1.0 | 460.0±10.0 |
GRPA7C0185 | 5C | 3.8V | 32000mAh | 64A | 10.4±0.3 | 119.0±1.0 | 184.0±1.0 | 504.0±10.0 |
GRP96C0240 | 5C | 3.8V | 38000mAh | 76A | 9.3±0.3 | 119.5±1.0 | 239.5±1.0 | 585.0±10.0 |
● High energy density, longer battery life, up to 15% longer than ordinary batteries;
● The energy density of the battery is increased by about 15% under the same rate and size;
● Simulating the actual use of the reliability test, can meet the 3-year service life, to meet the demand of high and low temperature, different multiplier on power industry applications;
● High and stable discharge platform, frequent use does not affect the life of the battery;
● Multiplier cycle performance can maintain 80% of the original capacity after 300 cycles;
● Capable of mass production and good cell consistency

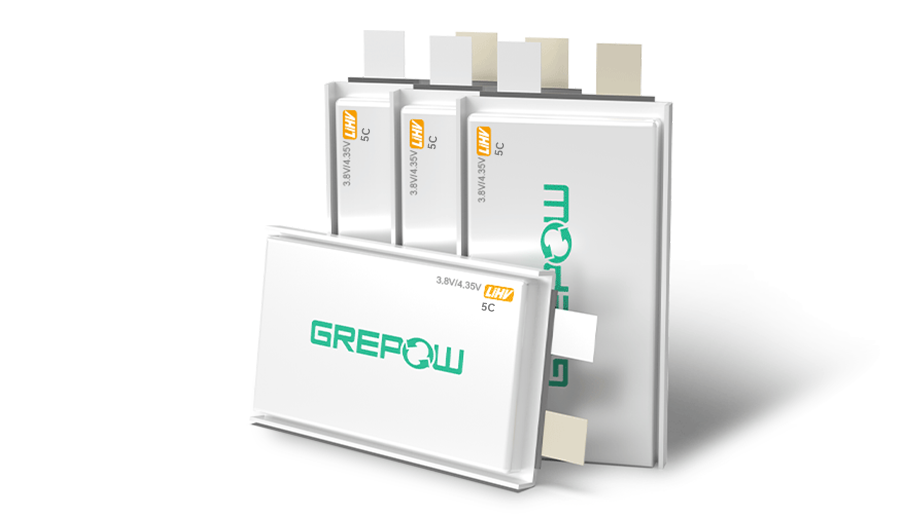

Grepow high-voltage lithium batteries have nominal voltages of 3.8V, 3.85V, 3.95V, corresponding to charge cut-off voltages of 4.35V, 4.4V and 4.45V respectively. compared with conventional ones, high-voltage batteries have high energy density and high discharge platform; under the same usage conditions, high-voltage batteries can discharge more capacity, so they have longer runtime and stronger power; Grepow high-voltage batteries range can be increased by 15%-25%, which is one of the core technologies of Grepow.
▶ Source manufacturer, physical factory, strong R&D production capacity, short delivery time and sufficient stock.
▶ Self-researched high-voltage lithium battery cells, sufficient capacity, refusal of false label, guaranteed capacity.
▶ Strict quality control: construct a full range of quality system from parts to finished products to ensure product quality
▶ Safe and reliable in line with a variety of domestic and international battery certification
▶ Perfect service system: Quickly reply to customer problems and provide solutions
▶ Provide local instant customer support in China, USA and Germany
● Flexible support for customized solutions
● Reliable and stable performance
● Samples and mass production available
● OEM, ODM available
