Designed to deliver high discharge rate, leading cycle life and robust safety protections, Grepow 12V 7Ah LiFePO4 battery is a prefect replacement for traditional lead acid battery.

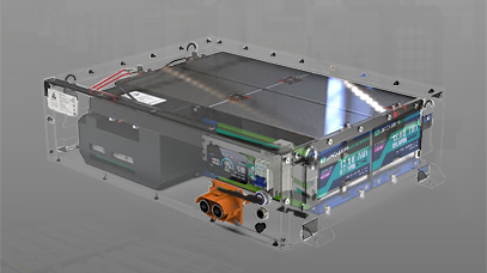

Grepow 12V 7Ah pouch-cell stacked LiFePO4 battery is a prefect replacement for traditional lead acid battery, which is identical in size to common 12V 7Ah lead-acid batteries. This combination reduces product integration costs, minimizes OEM customer's time to market and aftermarket customer replacement hurdles. Designed to deliver high discharge rate, leading cycle life and robust safety protections, the Grepow 12V 7Ah battery is ideal for demanding UPS, telecommunications back-up, and medical equipment power systems. Scalable arrays up to 48V, 148Ah (4S20P) without external Battery Monitoring System (BMS) it's possible.
Grepow 12V7AH LiFePO4 battery is designed as drop-in replacements for 12V lead-acid batteries, which are identical in size to common 12V7AH lead-acid batteries. This combination reduces product integration costs, minimizes OEM customer's time to market and aftermarket customer replacement hurdles. The Grepow 12V7AH offers significant performance advantage over traditional lead acid batteries:
●Superior energy density
●Offers up to 20 times longer cycle life

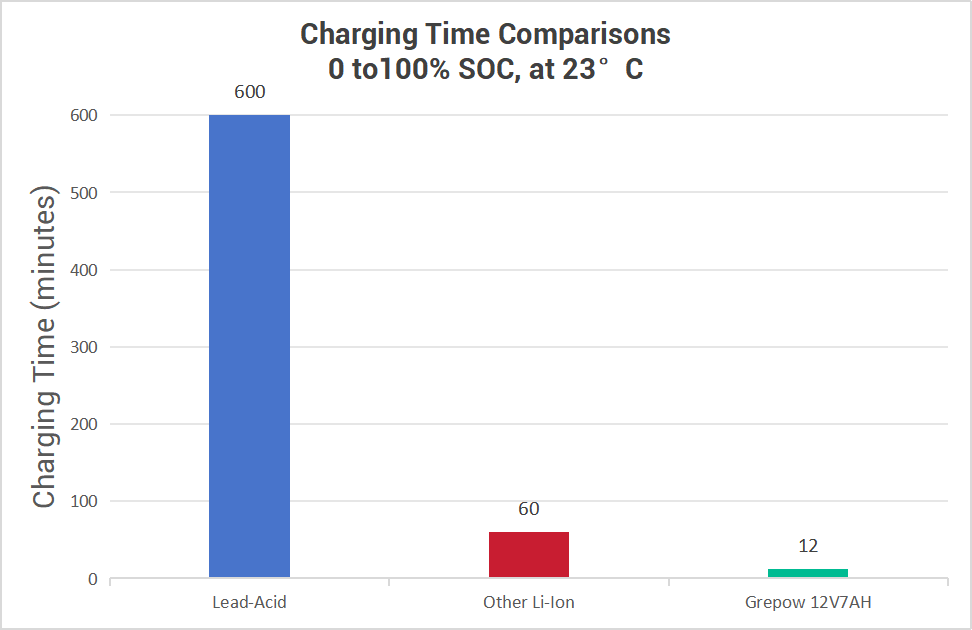

●50 times faster charging time
●40% of the weight of a lead acid battery
●Consistent voltage for a longer time
12V7AH LiFePO4 Core Features

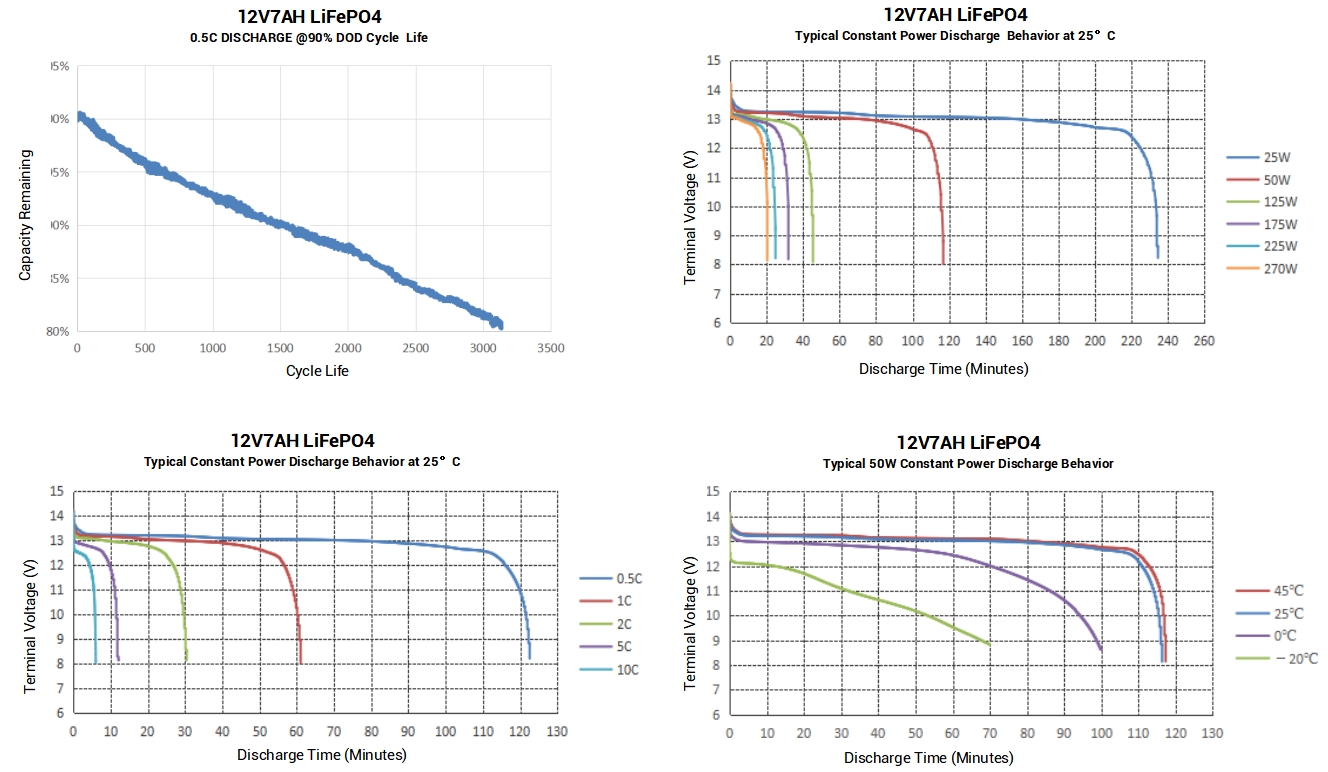

12V7AH LiFePO4 Specifications
12V7AH LiFePO4 Typical Applications
●Ultra Safe Lithium Iron Phoshate Cells
●High-rate Discharge Performance
●Long Cycle Life ( >3000)
●Fast Simple Charging (8C)
●Drop-in 12V Lead Acid Replacement
●Built-in BMS for Battery Protection
Nominal Voltage | 12.8V | Max.Charger Voltage (w/o damage) | 60V |
Nominal Capacity | 7.4Ah | Recommended Float Voltage | 13.6-14.4V |
Watt-hour | 94.72Wh | Charge time @ max rate | 7.5min@8C |
Max. Charge/Discharge Current Pulse | 40A | Min. Float Voltage | 13.6V |
Max. Inrush Current (Charge or Discharge) | 240A | Under-voltage Limit (min) | 8V |
Max. Continuous Discharge Current (to 100% Depth of Discharge) | 45A | Operating Temperature | -40～60℃ |
Max. Continuous Charge Current | 45A | Recommended Storage Temperature | -40～35℃ |
Max. Charge Voltage | 16V | Transportation | -40～70℃ |
●TELECOMMUNICATION
Communications gear, whether in public or private networks, must meet critical up-time requirements, despite being deployed in harsh and difficult to access locations.
◆Small cells, Private wireless, OSP, Customer premise equipment
●UPS SYSTEMS
Uninterruptible power supplies in data center (server UPS), industrial, and office applications - wherever computers are used in critical applications. Also suitable for industrial automation.
◆Industrial Automation, Server UPS
●MEDICAL EQUIPMENT
Increased backup functionality of medical devices in the indoor area, in the outdoor area ideal for the permanent operation of mobile devices without restrictions, thus significantly increasing the quality of patient care.
◆Mobile Carts, Diagnostic Equipment
●INDUSTRIAL SYSTEMS
Most applications have a combination of frequent and deep charge/discharge cycles and harsh environmental conditions. The Grepow 12V 7Ah LiFePO4 battery offers consistent power delivery across stateof-charge, fast recharging, light weight, long life, and robust safety.
◆Autonomous robots, Industrial machinery, Security systems, Emergency lighting
●OFF-GRID POWER SYSTEMS
Off-grid power systems require fast and frequent charge and discharge cycles, often in harsh environments with portable requirements.
◆Oil / gas / mining, remote sensors, electronic road signs, lighting
●VEHICLE
Built for use as house batteries in RVs, Campers, Van builds, or any vehicle where you are camping or working off grid in comfort, Grepow 12V7AH LiFePO4 batteries will give you twice the run time as your AGM or lead acid house battery while lasting 4x longer, providing exceptional lifetime value.
◆Rv,Vans, & Camper Batteries
