What Is a 7 Inch FPV Drone?

A 7-inch FPV drone is a specialized type of first-person view (FPV) quadcopter characterized by its 7-inch propeller size, designed primarily for long-range and efficient flight. This size strikes a balance between power, flight time, and payload capacity, making it popular among experienced pilots who seek extended cruising capabilities and cinematic aerial footage.This article delves into the world of 7-inch FPV drones, exploring their core components, diverse applications, and crucial considerations for anyone looking to harness their potential.

What is a 7 inch fpv drone?

A 7-inch FPV drone refers to a drone equipped with 7-inch propellers, which are larger than the common 5-inch props found on many racing drones. The larger prop size allows for greater thrust and efficiency, enabling longer flight times and the ability to carry heavier payloads. The 7-inch FPV drone is favored by experienced pilots who require a combination of speed, efficiency, and payload capacity, often for professional or semi-professional use.

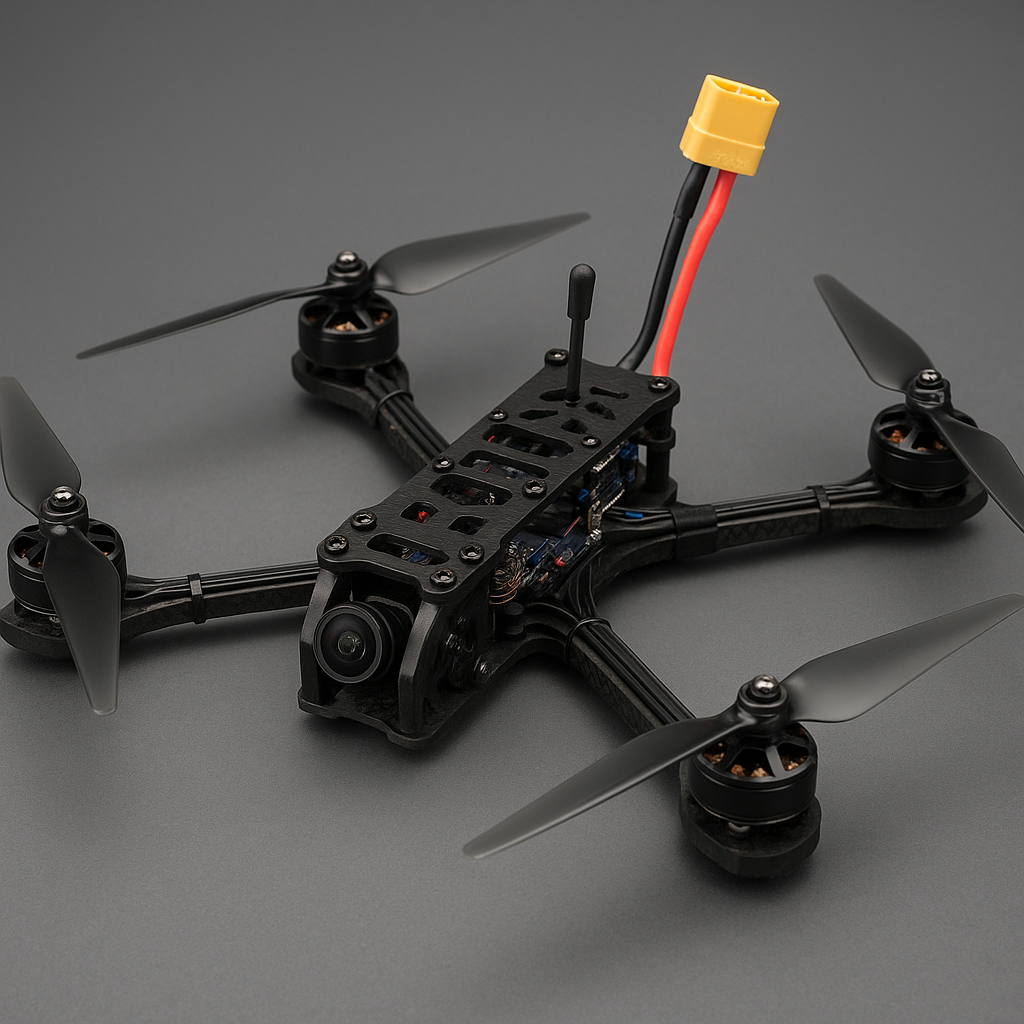

Main components of 7 inch fpv drone

  ●Frame: Carbon fiber dominates for its strength-to-weight ratio. Designs prioritize airflow and durability.

  ●Motors: High-torque 2207–2506 motors (1500–1900 kV) balance power and efficiency. Lower KV values help optimize efficiency for long-range flights.

  ●Electronic Speed Controllers (ESCs): 45A+ ESCs handle sustained current for aggressive maneuvers.

  ●Flight Controller: Modern FCs like the Holybro Kakute H7 support advanced protocols for tuning and GPS integration.

  ●Propellers: 7-inch tri-blade or bi-blade props designed for efficiency and stable flight at high speeds.

  ●GPS Module: Optional but common in 7-inch builds for long-range return-to-home (RTH) and telemetry.

  ●Battery: Typically a 6S LiPo battery (22.2V) with capacities ranging from 1800mAh to 8000mAh, depending on the desired flight time and payload.

FPV System: This allows the pilot to see what the drone sees in real-time. It typically consists of:

  ●FPV Camera: A small, lightweight camera mounted on the drone.

  ●Video Transmitter (VTX): Transmits the video signal from the camera to the pilot's goggles.

  ●FPV Goggles or Monitor: Displays the live video feed to the pilot.

  ●Receiver: Long-range systems like ExpressLRS or Crossfire offer <10ms latency and 10km+ control.

What are the applications of 7 inch fpv drone?

7-inch FPV drones are primarily used for:

  ●Long-Range Flying: Their efficiency and larger battery capacity allow flights exceeding 15-20 minutes and ranges of several kilometers, ideal for exploration and surveying.

  ●Cinematic Aerial Photography and Videography: The stability and payload capacity enable mounting of high-quality cameras for smooth, cinematic shots.

  ●Light Freestyle Flying: While not as agile as smaller drones, some pilots use 7-inch drones for gentle freestyle maneuvers.

  ●Payload Delivery and Specialized Projects: Some 7-inch drones can carry payloads between 1-3 kg, useful for engineering projects, light cargo delivery, or specialized tasks like deploying small devices.

What is the payload capacity of a 7 inch fpv drone?

The payload capacity of a 7-inch FPV drone can vary significantly depending on the specific build, including the motors, battery, and overall weight of the drone itself. However, generally speaking, a well-built 7-inch drone can comfortably carry payloads ranging from 500 grams to over 1.5 kilograms (or even more in some specialized builds).

How fast can a 7 inch fpv drone fly?

While not primarily designed for extreme speed like dedicated racing drones, 7-inch FPV drones can still achieve impressive speeds. Depending on the motors, propellers, battery voltage, and overall weight, a typical 7-inch drone can reach top speeds ranging from 80 to 130+ kilometers per hour (50 to 82+ miles per hour). However, the focus for most 7-inch applications is not raw speed but rather a balance of speed, stability, and efficiency for tasks like smooth cinematic flight or covering long distances.

How to choose a battery for 7 inch fpv drone?

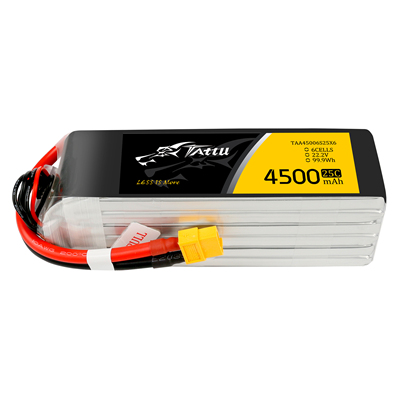

  ●Voltage (Cell Count - S): 6S LiPo batteries (22.2V) are standard for 7-inch drones, providing the necessary power for larger motors and props.

  ●Capacity (mAh): Higher capacity batteries (e.g., 3000mAh to 9000mAh or more) will generally provide longer flight times. However, larger capacity batteries are also heavier, which can reduce payload capacity and potentially affect maneuverability.

  ●Discharge Rate (C-Rating): The C-rating indicates how quickly the battery can safely discharge its energy. For 7-inch drones, especially those carrying heavier payloads, a decent C-rating (e.g., 50C or higher) is recommended to ensure the battery can deliver the necessary power to the motors.

  ●Physical Size and Weight: The battery needs to fit securely within the drone frame and should not add excessive weight that compromises performance.

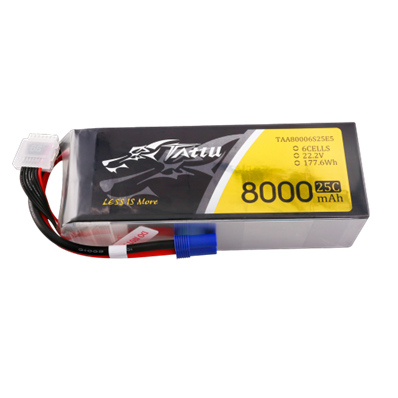

Use Case Example: 1KG Payload with a 6s 8000mAh Battery

To estimate the flight time of a 7-inch FPV drone carrying a 1kg payload and powered by a 6S 8000mAh LiPo battery, we need to consider several factors, such as power consumption (current draw) under load, battery capacity, and efficiency.

  ●Battery: 6S 8000mAh (22.2V nominal voltage, 8Ah capacity)

  ●Payload: 1kg (likely total takeoff weight ~1.8–2.5kg including drone + battery)

  ●Average Current Draw (estimated): For a well-tuned 7-inch drone with 1kg payload, current draw can range 25A–45A, depending on motor efficiency and flight style (hovering, cruising, aggressive flying).

  ●Usable Battery Capacity: ~80% of 8000mAh = 6400mAh = 6.4Ah (to preserve battery health)

  ●Flight Time (minutes) = Usable Battery Capacity (Ah) / Average Current Draw (A)×60

Flight Time:

  ●Scenario 1: Efficient Cruise (25A)

6.4/25x60=15.4 minutes

  ●Scenario 2: Mixed Flying / Windy Conditions (40A)

6.4/40x60=9.6 minutes

  ●Scenario 3: Aggressive Throttle or Climb (50A)

6.4/50x60=7.7 minutes

Conclusion

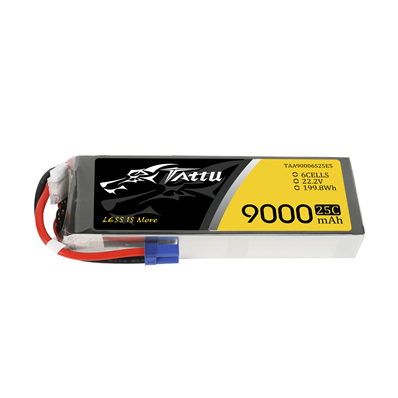

The 7-inch FPV drone is a powerful and versatile platform for advanced drone pilots, professionals, and content creators. Its ability to fly far, fast, and carry essential equipment makes it a go-to choice for missions that 5-inch drones simply can’t handle.To get the most out of a 7-inch build, focus on balancing power and efficiency, selecting the right battery, and understanding your application needs. As a global leading lipo battery manufacturer, Grepow offers FPV battery for 7-inch FPV drones. The battery capacities range from 3000mAh to 9000mAh, with discharge rates (C ratings) from 15C to 150C, catering to your specific application requirements. If you have any questions or needs, please feel free to contact us at info@grepow.com.
