What Is a 6S LiPo Battery?

Lithium Polymer (LiPo) batteries are widely used in drones, RC vehicles, and various other applications due to their lightweight, high energy density, and power delivery. Among these, 6S LiPo batteries are particularly popular. This guide explores their specifications, types, and applications.

What does 6S mean on A LiPo battery?

"6S" refers to the configuration of the battery, where 6 cells are connected in series. This arrangement allows the total voltage to increase, as the voltage of each cell adds up. The "S" signifies the cells are connected in series, which increases the voltage. Each cell has a nominal voltage of 3.7V, adding up to the total voltage of the battery.

What is the Voltage of 6S LiPo Batteries?

As mentioned above, a 6S LiPo battery has a nominal voltage of 22.2 volts (3.7Vx6). However, the actual voltage can fluctuate depending on the battery's state of charge (SOC). Usually a lipo battery has nominal voltage, fully charged voltage and safe discharged voltage.

  ●Nominal Voltage: 22.2V (6×3.7V)

  ●Fully Charged Voltage: 25.2V (6×4.2V)

  ●Safe Discharged Voltage: 18.0V (6×3.0V)

What is the Capacity of 6S LiPo Batteries?

Capacity, measured in milliampere-hours (mAh) or ampere-hours (Ah), determines how long it can supply power at a given current. Common capacities range from 1000mAh to 20,000mAh or more.

Choosing a Capacity:

  ●RC Aircraft/Drones: Smaller drones often use 3000–6000mAh for balance between flight time and weight.

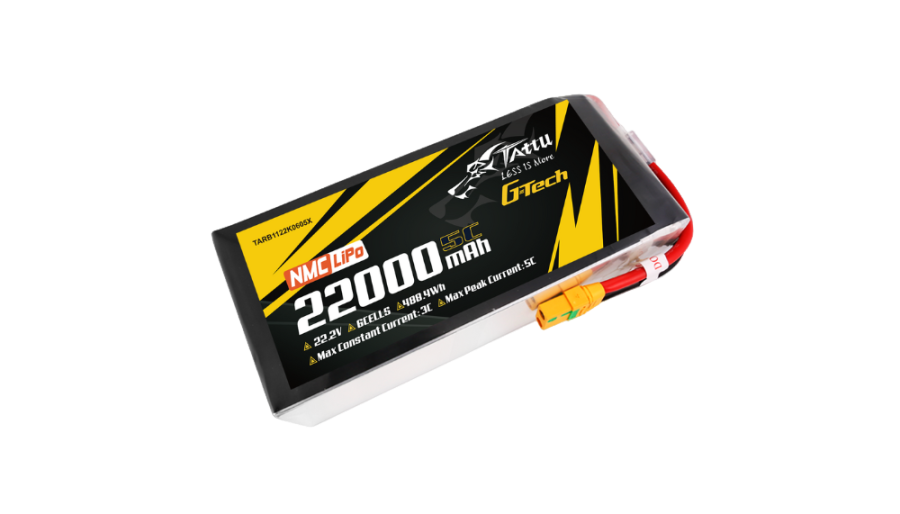

  ●Industrial Applications: Heavy-lift drones may require capacities of 20,000mAh or higher.

However, higher capacity provides longer runtime but adds weight, impacting performance. When selecting a capacity, you should consider the specific energy needs of your device and the trade-off between runtime and weight.

What is the Discharge Rate of 6S LiPo Batteries?

The discharge rate, denoted as "C-rating," represents how quickly a battery can deliver current. A higher C rating means a faster discharge rate. For example, a 5000mAh battery with a 50C rating can supply 250A (50 × 5A).

Choosing a C-rating:

  ●RC Cars: High C-ratings (50C–100C) for bursts of power.

  ●Drones: Moderate ratings (20C–50C) for consistent delivery without overheating.

High-power applications require batteries with higher C ratings. But pushing a battery to its maximum C rating can reduce its lifespan. Ensure the C-rating matches your system's current demand.

How long do 6S LiPo batteries last?

The lifespan of a 6S LiPo battery depends on usage, charging, and storage practices. Proper care and maintenance can significantly extend their lifespan. Generally, you can expect hundreds of charge-discharge cycles before noticeable performance degradation. Proper care includes avoiding deep discharges, storing at optimal voltages, and maintaining appropriate temperatures during use.

6S LiPo battery types: standard 6S LiPo battery vs. 6S semi-solid state battery

  ●Standard 6S LiPo Battery: These are traditional lithium polymer batteries known for their high energy density and lightweight design. Commonly used in consumer drones and RC vehicles. Standard 6S LiPo Battery has High discharge rates, lower cost and lower energy density compared to advanced types.

  ●Semi-Solid State Battery: An emerging technology that offers improved safety and longevity compared to standard LiPo batteries. They incorporate advanced chemistry for higher energy density (up to 350Wh/kg) and are safer and more stable due to reduced risk of thermal runaway. Ideal for industrial drones, medical supply delivery, and long-range UAVs.

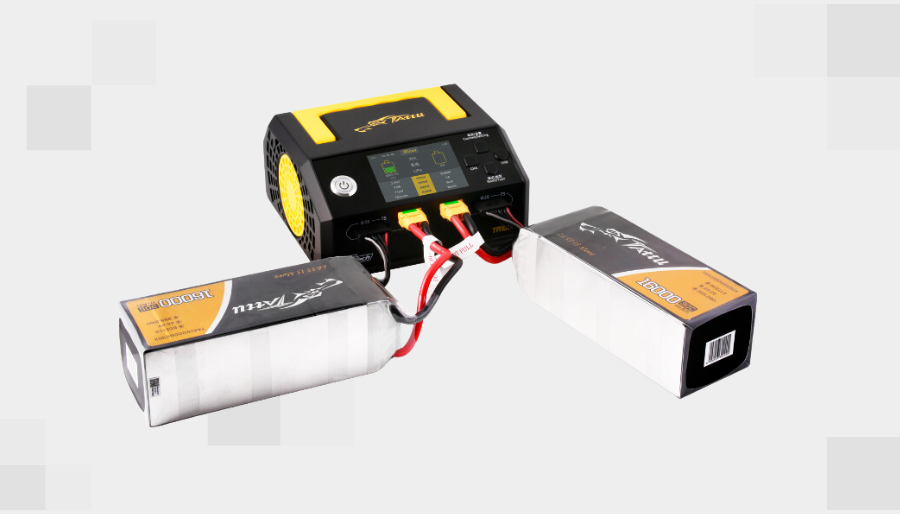

What is a 6S Lipo Battery Charger?

A 6S LiPo charger is designed specifically for charging these battery packs safely and efficiently. A 6S LiPo battery charger must charge each cell to 4.2V while keeping them balanced. When choosing a charger, consider the following factors:

  ●Balance Charging: Ensures even voltage across cells.

  ●Current Setting: Matches the battery capacity (e.g., 1C charge rate).

  ●Safety Features: Overcharge, temperature, and short-circuit protection.

Always monitor the charging process closely and never leave charging batteries unattended due to potential fire hazards.

What is the difference between 4S and 6S LiPo?

The primary difference between 4S and 6S LiPo batteries lies in voltage output and suitability for different applications. A higher number of cells allows for greater power delivery in the case of the 6S configuration.

Voltage:

  ●4S: 14.8V nominal, 16.8V fully charged.

  ●6S: 22.2V nominal, 25.2V fully charged.

Applications of 14s LiPo Batteries

  ●Drones: FPV racing, aerial photography, and heavy-lift UAVs.

  ●RC Vehicles: Cars, boats, helicopters, and planes needing high speed and torque.

  ●Hobby Robotics: For powering robots and other robotic devices.

  ●Industrial: Delivery drones, inspection UAVs, and mapping.

  ●Medical: Emergency supply transportation with high-energy semi-solid state variants.

  ●Power Tools: Some high-powered cordless tools utilize 6S LiPo batteries.

Conclusion

6S LiPo batteries are versatile power solutions for a range of applications. Selecting the right capacity, discharge rate, and type is essential for optimizing performance and longevity. Whether you're flying a racing drone or operating an industrial UAV, understanding these batteries ensures better performance and safety. As a global leading lipo battery manufacturer, Grepow offers professional standard and customizable 6s lipo UAV battery and semi-solid state battery solutions to meet the needs of all knids of consumer and industrial applications. If you have any questions or needs, please feel free to contact us at info@grepow.com.
