VTOL Drone Battery Choose Guide

In the rapidly evolving world of unmanned aerial vehicles (UAVs), VTOL drones are leading the charge in innovation. Their ability to hover, take off, and land vertically makes them ideal for diverse applications—from aerial photography and surveying to search and rescue missions. However, one of the most critical aspects of ensuring optimal performance in VTOL drones is choosing the right battery. This guide dives into the world of VTOL drones and provides a comprehensive overview of how to choose the right battery for your specific needs.

What is VTOL in drones?

VTOL stands for Vertical Takeoff and Landing. Unlike conventional fixed-wing drones that require a runway or significant forward motion to generate lift, VTOL drones can hover, ascend, and descend vertically. This unique capability stems from their design, which typically includes one or more rotors that generate lift independently of the forward motion. This capability provides significant operational flexibility, especially in areas where space is limited or the terrain is challenging.

What types of VTOL drones?

VTOL drones come in various designs, each tailored to specific mission requirements. Here are some common types:

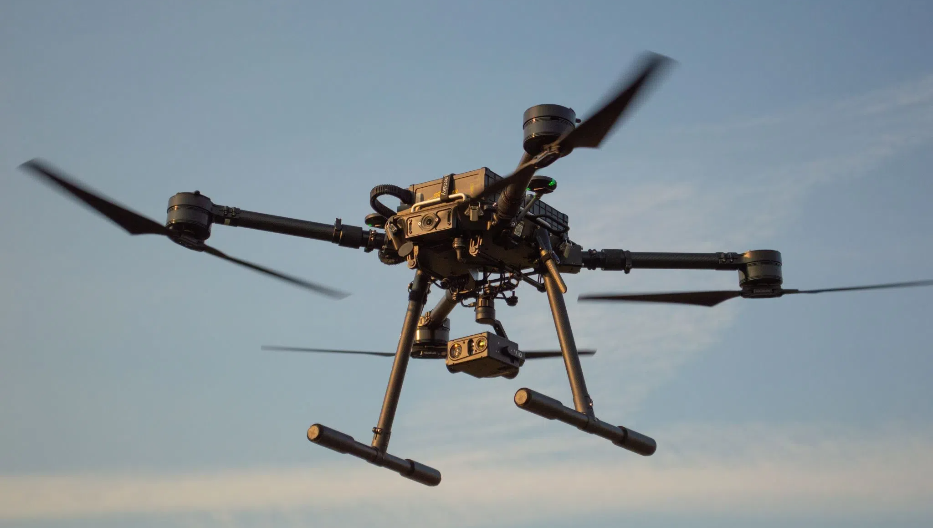

Multirotor VTOL Drones

Some multirotor drones incorporate additional design elements (like tilting mechanisms) to enhance transition efficiency between hover and cruise modes. They are particularly popular in the consumer market for their versatility and ease of operation.

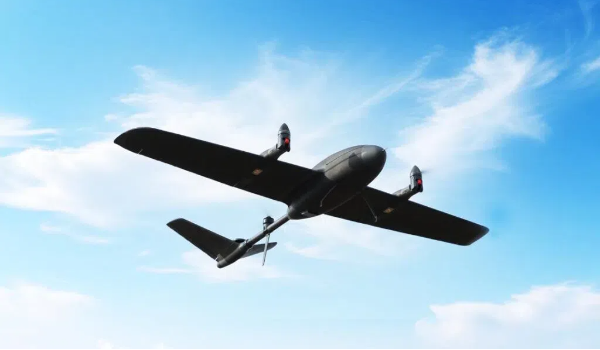

Fixed-Wing Hybrid VTOL Drones

In these designs, separate propulsion systems handle vertical lift and horizontal flight. A dedicated set of rotors or lift engines enables VTOL performance, while fixed-wing propulsion delivers efficient cruising. This hybrid approach is often used in applications where long-range missions are essential, such as in mapping and surveying. For more information about fixed-wing VTOL drones, you can checl this article: What Is a Fixed Wing VTOL Drone?

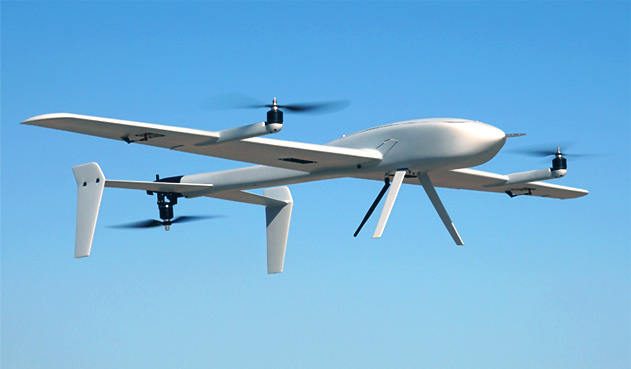

Tilt-Rotor VTOL Drones

These drones feature rotors that tilt to transition from vertical lift to horizontal flight. In vertical mode, the rotors provide lift; during forward flight, they tilt to generate thrust.

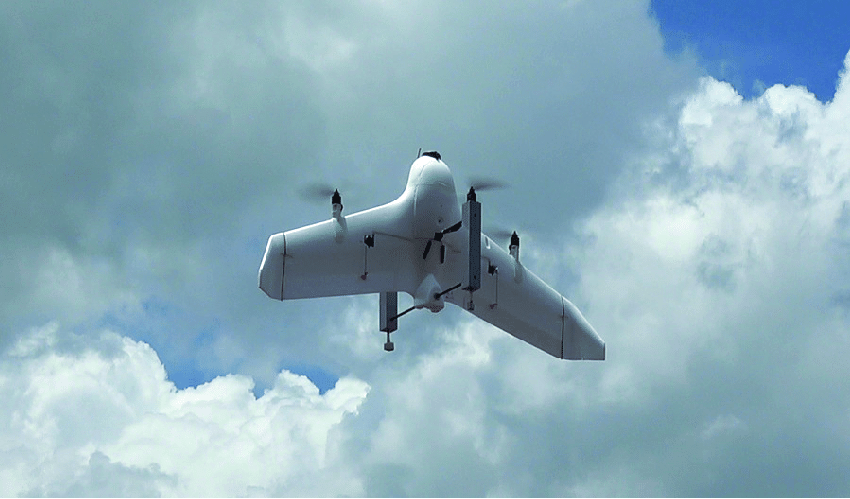

Tail-Sitter VTOL Drones

Tail-sitter designs rest on their tails during takeoff and landing, tilting to achieve horizontal flight. While they offer mechanical simplicity, controlling the transition phase can be challenging.

What is the difference between VTOL and STOL?

While both VTOL and STOL (Short Takeoff and Landing) aircraft are engineered to operate in constrained environments, they differ primarily in their takeoff and landing mechanisms. In essence, VTOL drones offer the ultimate flexibility for operations in tight spaces, whereas STOL drones trade some maneuverability for greater cruise efficiency.

VTOL Drones

Capable of vertical lift, these drones do not require any runway space. They can hover and perform complex maneuvers in confined areas, making them ideal for urban operations and areas with limited space.

STOL Drones

STOL systems require only a short runway for takeoff and landing. Although they benefit from increased aerodynamic efficiency during cruise flight, they cannot hover like VTOL drones. This makes STOL suitable when only a minimal horizontal distance is available, but vertical maneuverability is not a priority.

What are the applications of VTOL drones?

VTOL drones have transformed various industries by combining the benefits of vertical lift with the efficiency of horizontal flight. Here are some key applications:

  ●Aerial Photography and Cinematography:VTOL drones provide dynamic shots in tight spaces and urban landscapes without the risk of collision or runway limitations.

  ●Surveying and Mapping:Their ability to transition smoothly between vertical and horizontal flight modes makes them ideal for collecting detailed geospatial data over diverse terrains.

  ●Delivery: VTOL drones can deliver packages to locations that are inaccessible to traditional vehicles.

  ●Search and Rescue:VTOL drones can operate in areas with limited landing zones, enabling rapid deployment in emergency situations.

  ●Infrastructure Inspection:From power lines to bridges, VTOL drones can access hard-to-reach areas, providing high-resolution imaging for maintenance and safety assessments.

  ●Public Safety & Surveillance:In urban environments, VTOL drones can be deployed quickly for crowd monitoring, law enforcement, and emergency response tasks.

  ●Agricultural Monitoring:These drones help in crop monitoring, irrigation planning, and environmental assessment, even in fields with uneven terrain.

How to choose battery for VTOL drones?

Choosing the right battery is crucial for maximizing the performance and flight time of your VTOL drone. Here are the key factors to consider:

  ●Capacity: Battery capacity, measured in milliamp-hours (mAh), determines how much energy the battery can store. Higher capacity generally translates to longer flight times, but it also increases the battery's weight.

  ●Voltage: Battery voltage, measured in volts (V), affects the power output of the battery. VTOL drones typically require higher voltage batteries (6S, 12S, 18S)to provide sufficient power for both vertical and horizontal flight.

  ●Discharge Rate: VTOL drones draw high currents during vertical takeoff and hovering. Make sure the battery can handle these peak power loads without voltage sag. The discharge rate, measured in C-rating, indicates how quickly the battery can release its energy. A higher C-rating is necessary for VTOL drones to provide the burst of power needed for take-off and maneuvering.

  ●Size and Weight: The battery's size and weight must be compatible with the drone's design and payload capacity. A larger battery may provide longer flight times, but it can also make the drone less agile and reduce its payload capacity.

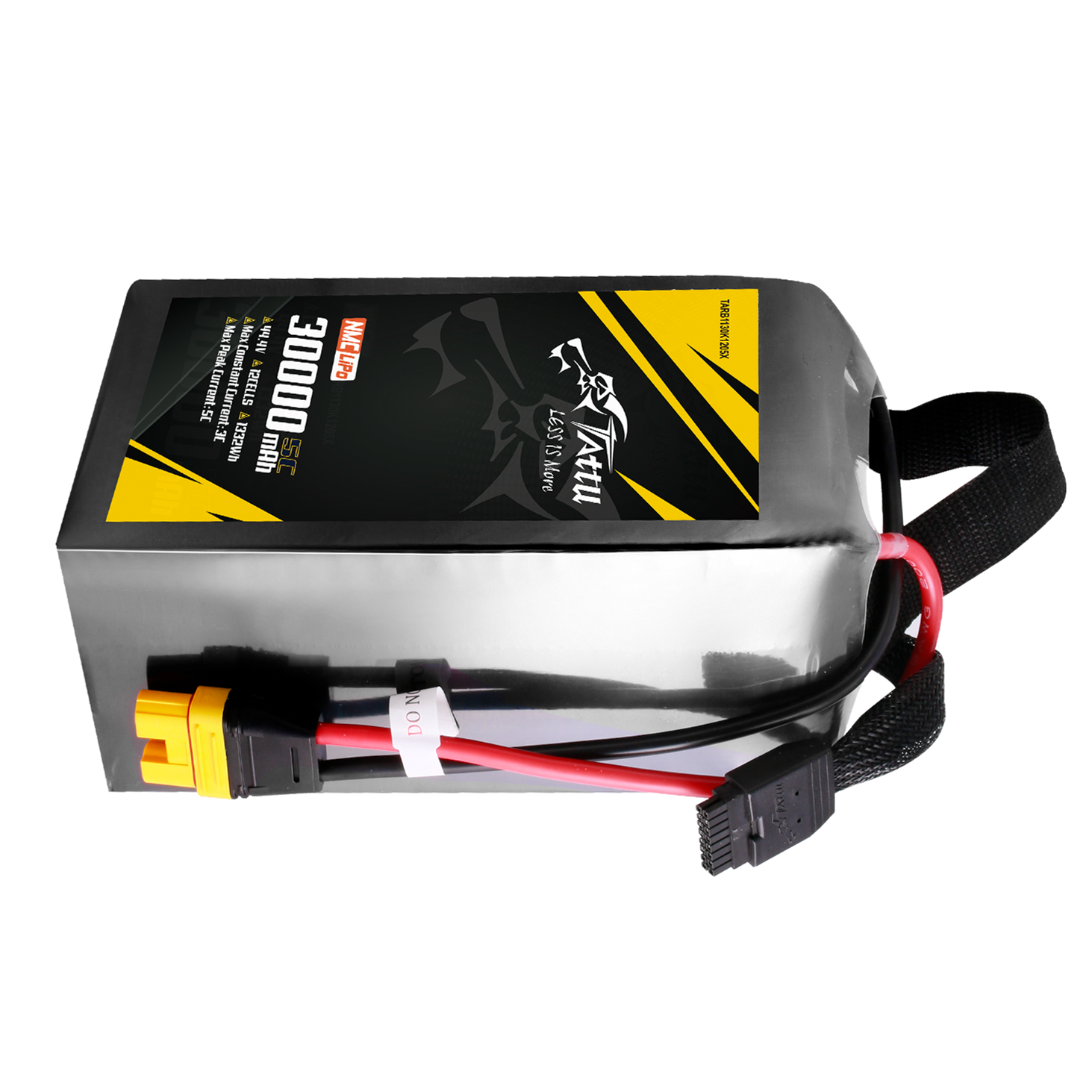

  ●Battery Chemistry: Lithium Polymer (LiPo) batteries are the most common type of battery used in VTOL drones due to their high energy density and relatively light weight. However, they require careful handling and maintenance to avoid damage or fire hazards.

  ●Brand and Quality: Choose batteries from reputable brands (such as Grepow) with a proven track record of quality and reliability. This will ensure that you get a battery that performs as expected and lasts for a reasonable number of charge cycles.

Additional Tips for Choosing VTOL Drone Batteries:

  ●Consult the drone's specifications: The drone manufacturer's specifications will provide information on the recommended battery capacity, voltage, and discharge rate.

  ●Consider the specific application: The type of application will influence the battery requirements. For example, a delivery drone that needs to travel long distances will require a higher capacity battery than a drone used for short-range inspections.

  ●Balance flight time and performance: There is often a trade-off between flight time and performance. A larger battery may provide longer flight times, but it can also make the drone less agile and reduce its payload capacity.

  ●Factor in charging time: Consider the charging time of the battery, especially if you need to fly multiple missions in a short period.

  ●Invest in a good charger: A high-quality charger will ensure that your batteries are charged safely and efficiently.

By carefully considering these factors, you can choose the right battery for your VTOL drone and maximize its performance and flight time. Remember that batteries are a critical component of any VTOL drone system, so it's worth investing in high-quality batteries that meet your specific needs.

Conclusion

VTOL drones are at the forefront of UAV innovation—combining the agility of rotorcraft with the efficiency of fixed-wing systems. Their unique ability to take off and land vertically opens up a myriad of applications, from precision mapping and infrastructure inspection to rapid response in emergency scenarios. However, the performance of these versatile machines hinges on selecting the right battery. By carefully considering factors such as power demand, chemistry, capacity, voltage, and safety features, you can ensure that your VTOL drone is powered to meet the rigorous demands of both takeoff and cruise flight. Grepow offers a semi-solid state battery with a remarkable energy density of up to 350 Wh/kg. This innovative battery supports a voltage range from 4S to 24S and can reach a maximum capacity of 84 Ah, making it ideal for various applications in long range and heavy lift payload VTOL drones. If you have any questions or needs, please feel free to contact us at info@grepow.com.
