How to Choose Li-ion Battery for Spray Drone?

Spray drones are revolutionizing modern agriculture, offering unprecedented precision and efficiency in crop management. These unmanned aerial vehicles (UAVs) are rapidly becoming indispensable tools for farmers seeking to optimize yields, reduce chemical usage, and enhance operational efficiency. At the heart of every spray drone lies its power system—specifically the lithium-ion battery—which determines flight time, payload capacity, and overall operational reliability. This article provides comprehensive guidance on selecting the appropriate Li-ion battery for spray drones, focusing on matching battery specifications to payload requirements and operational needs. Understanding these factors is essential for maximizing the effectiveness of these agricultural workhorses while ensuring safe and efficient operation in the field.

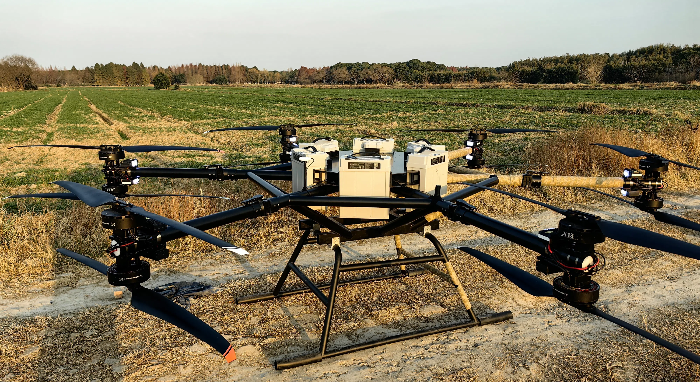

What is a Spray Drone?

A spray drone, also known as an agricultural drone or crop spraying drone, is an unmanned aerial vehicle specifically designed for agricultural applications. These drones are equipped with specialized systems to carry and precisely apply liquids (like pesticides, herbicides, fungicides, liquid fertilizers) or granules (like seeds, granular fertilizers, and granular pesticides) over crops. Operating remotely, spray drones offer a significant upgrade from traditional methods like manual spraying or tractor-mounted sprayers, especially for large or difficult-to-access fields.

What Are the Main Functions of a Spray Drone?

Spray drones are primarily utilized for two core functions: spraying and spreading. While both serve the purpose of applying materials to crops, they involve distinct mechanisms and payload considerations.

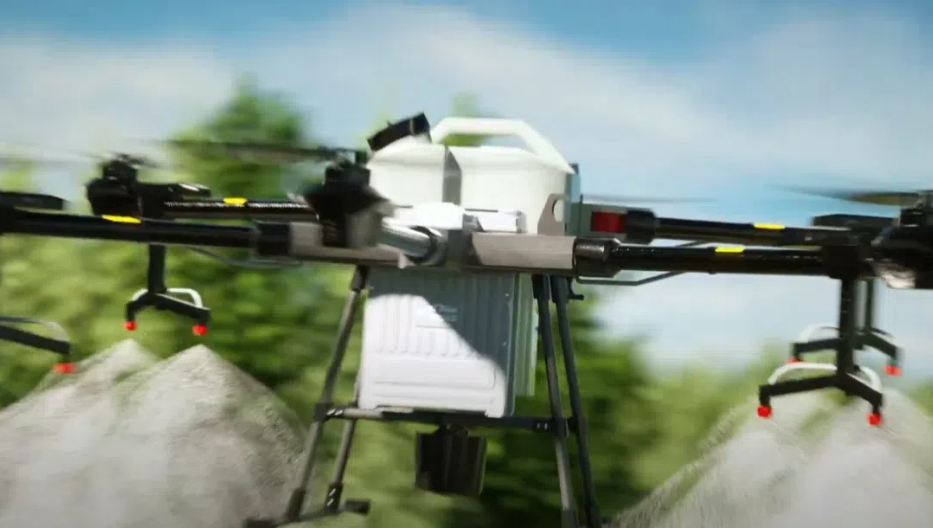

1. Spraying

Spraying drones are designed to deliver liquid substances such as pesticides, herbicides, and fertilizers. They use nozzles and pumps to atomize the liquid into fine droplets, ensuring even distribution across crops. This method minimizes waste, reduces human exposure to chemicals, and improves application accuracy. Key aspects of spraying with drones include:

  ●Precision Application: Drones can be programmed to follow precise flight paths and control spray nozzles with pinpoint accuracy, minimizing overspray and drift. This targeted application reduces chemical waste, environmental impact, and costs.

  ●Uniform Coverage: Advanced spray systems, often utilizing pressure nozzles or rotary atomizers, ensure even distribution of the liquid across the target area.

  ●Variable Rate Application: Some advanced spray drones are equipped with sensors and software that enable variable rate application. This means the drone can adjust the spray rate in real-time based on field conditions and crop needs, further optimizing resource utilization.

  ●Drift Reduction: Operating closer to the crop canopy and utilizing specialized nozzles, spray drones significantly reduce chemical drift compared to traditional aerial spraying methods, enhancing application efficiency and minimizing off-target contamination.

2. Spreading

Spreading drones are used to disperse granular or powdered materials, including seeds, fertilizers, and soil amendments. These drones are equipped with mechanical or pneumatic spreaders to ensure even distribution. Key aspects of spreading with drones include:

  ●Efficient Seeding: Drones can efficiently broadcast seeds over large areas, particularly beneficial for reforestation, cover cropping, and seeding in challenging terrains.

  ●Uniform Fertilizer Distribution: Spreading granular fertilizers with drones ensures consistent nutrient distribution across the field, promoting even crop growth.

  ●Pest Control with Granules: Granular pesticides can be effectively spread using drones for targeted pest management.

  ●Time and Labor Savings: Drone spreading is significantly faster and less labor-intensive compared to manual spreading methods, especially for large farms.

What is the Payload of a Spray Drone?

The payload of a spray drone refers to the weight it can carry in addition to its own weight, which can be broadly categorized into liquid and solid payloads, each serving specific purposes in crop management. Liquid payloads include pesticides, herbicides, fungicides, liquid fertilizers, growth regulators, and sometimes even beneficial microorganisms. These materials require specialized containment systems and precise dispensing mechanisms to ensure uniform application. Solid payloads encompass materials like seeds, granular fertilizers, lime, and other particulate substances that need to be distributed across fields. These materials present different handling challenges compared to liquids, requiring specialized hoppers and metering systems to ensure consistent distribution patterns.

Payload capacity is a crucial specification, as it directly dictates the operational efficiency and area coverage per flight. A higher payload capacity generally translates to:

  ●Larger Area Coverage per Flight: More material carried means fewer trips back to base for refilling, increasing productivity.

  ●Reduced Operational Time: Completing tasks faster saves time and reduces operational costs.

  ●Potential for Heavier, More Efficient Systems: Sufficient payload capacity allows for the integration of more advanced and potentially heavier spraying or spreading systems.

However, increased payload capacity also often implies a need for larger, more powerful motors and, critically, more robust and higher-capacity batteries.

Payload Capacity Types

The payload capacity of spray drones varies significantly across different models, reflecting their intended applications and design philosophies. Manufacturers typically specify payload capacities in terms of either weight (KG) or volume (L), sometimes providing both metrics for clarity. For instance, the FDAD-Q660L has a tank capacity of 60L with a full load take-off weight of 120KG, while the AGRAS T40 specifies a spray load of 40 kg and a spread load of 50 kg (70 L). These differences in specification format can sometimes create confusion when comparing different models, making it essential to understand the relationship between volume and weight for typical agricultural inputs. Spray drones are categorized based on their payload capacity:

  ●Light Payload (5-10 kg): Suitable for small farms or localized applications.

  ●Medium Payload (10-30 kg): Ideal for mid-sized agricultural fields with diverse terrain.

  ●Heavy Payload (30-100 kg): Designed for large-scale farming and industrial use, capable of handling extensive coverage.

Why Are the Payload Capacities of Spray Drone's Spraying and Spreading Different?

An interesting aspect of spray drones is that their payload capacities often differ between spraying and spreading operations. For example, the AGRAS T40 has a spray load capacity of 40 kg but can carry a spread load of 50 kg (70 L). This difference stems from several fundamental factors related to the physical properties of the materials being distributed and the mechanics of the distribution systems themselves. Understanding these differences is crucial for selecting the appropriate drone and power system for specific agricultural operations. Reasons for Different Payload Capacities:

  ●Density Difference: Liquids are heavier per unit volume compared to most granular materials, limiting the load capacity for spraying.

  ●Distribution System: Spraying systems require pumps and nozzles, which add weight and consume more energy. Spreading systems are often mechanically simpler and lighter.

  ●Flight Stability: Liquid payloads shift during flight, requiring advanced stabilization, whereas solid payloads maintain a more consistent center of gravity.

How to Choose Li-ion Battery for Different Payload Spray Drones?

Selecting the right Li-ion battery for a spray drone involves balancing energy requirements, payload capacity, and operational efficiency. Key factors to consider include battery capacity (measured in mAh or Ah), voltage, discharge rate (C-rate), and weight.

1. Voltage Requirements

Higher voltage batteries (e.g., 22.2V 6S or 44.4V 12S) are necessary for heavy payloads to maintain stable power output. Ensure the drone's power system supports the selected voltage range.

  ●Light Payload: 6S (22.2V) is common.

  ●Medium Payload: 12S (44.4V) for increased efficiency.

  ●Heavy Payload: 14S or custom high-voltage configurations.

2. Discharge Rate (C-Rate)

The C-rate indicates how quickly the battery can discharge its energy. High-payload drones require a higher C-rate to deliver sufficient power during intensive operations.

  ●Light Payload: 10C-20C

  ●Medium Payload: 20C-30C

  ●Heavy Payload: 30C-40C or higher

3. Weight Considerations

While higher capacity and voltage improve performance, they also increase battery weight. Balance battery size with payload capacity to avoid exceeding the drone's maximum takeoff weight (MTOW).

4. Specialized Li-ion Battery Features

Modern Li-ion batteries for spray drones often include advanced features to enhance performance and safety:

  ●High Energy Density: Maximizes flight time without increasing weight.

  ●Fast Charging: Reduces downtime between operations.

  ●Temperature Management: Ensures safe operation in extreme climates.

  ●Smart Battery Management System (BMS): Monitors battery health, temperature, and discharge rates.

5. Matching Battery to Mission Needs

For small payload drones carrying under 20kg, moderate voltage configurations (6S-10S) typically provide sufficient power, with capacities in the 10,000-15,000mAh range offering a reasonable balance between weight and flight time. These smaller systems often utilize single battery configurations, simplifying the power system while maintaining adequate performance for lighter agricultural applications like spot treatments or small plot spraying.

Medium payload drones in the 20-40kg range require more substantial power systems to maintain reasonable flight times under load. These systems typically employ higher voltage configurations (12S-14S) to improve power efficiency, coupled with larger capacity batteries in the 16,000-22,000mAh range. The transition to dual battery systems often occurs in this category, with parallel battery configurations providing the capacity needed for practical operational durations.

Heavy payload drones exceeding 40kg total payload capacity represent the upper tier of agricultural drone systems, requiring the most sophisticated power solutions. These drones typically employ high-voltage systems (14S or higher) for maximum power efficiency, with multiple high-capacity batteries operating in tandem to provide the enormous energy reserves needed for lifting such substantial weights.

Example Scenario:

Let's say you have a spray drone with a recommended voltage of 12S (44.4V) and you typically carry a 10-liter (approximately 10 kg) liquid payload for spraying. You desire a flight time of around 15-20 minutes per battery.

  ●Start: Look for 12S Li-ion batteries.

  ●Capacity Estimation: Using a simplified power consumption estimate (this requires more precise drone specs), you might aim for a capacity in the range of 16000mAh to 22000mAh or higher to achieve the desired flight time with payload.

  ●C-Rating: Aim for a C-rating of at least 15C to 20C or higher for reliable power delivery under load.

  ●Power-to-Weight Ratio: Compare batteries within this capacity range, selecting those with the best Wh/kg and lowest weight.

  ●Brand and Reviews: Choose reputable brands with positive reviews and proven performance in agricultural drone applications.

Conclusion

Choosing the right Li-ion battery for a spray drone involves a careful assessment of payload type, capacity, and mission duration. By matching battery specifications to drone requirements, operators can maximize efficiency, minimize downtime, and achieve superior agricultural outcomes. Prioritize high-quality, reliable batteries with advanced features to ensure optimal drone performance across various applications. Remember to always consult drone and battery manufacturer guidelines and seek expert advice when needed to make the most informed decision for your specific needs. As a global leading lipo battery manufacturer, Grepow offers professional one-stop agricultural drone battery solutions to meet the needs of various farming applications. If you have any questions or needs, please feel free to contact us at info@grepow.com.

Appendix: Grepow Li-ion Battery Buying Guide for Different Payload Agricultural Drones

  ●Tattu Pro Series Smart Li-ion Battery：10-25L Light Payload Agricultural Drone Power Solutions

The Tattu Pro Smart Battery features a durable full aluminum metal structure for enhanced protection, supports 3C-5C fast charging for quicker power replenishment, offers optimized heat dissipation for improved thermal management, and provides flexible connectivity with optional Molex and AS150U-F connectors, while being available in both a 4.2V standard voltage version and a 4.35V high voltage version for diverse application needs.

  ●Tattu 4.0 Series Smart Li-ion Battery：20-70L Heavy Payload Agricultural Drone Power Solutions

The Tattu 4.0 Series Smart Battery features a 30Ah high capacity for extended flight times, 4C-5C fast charging that enables a charge from 30% to 95% in just 9 minutes, an enhanced ventilation system for better heat dissipation and performance stability, and an optional MOSFET modular design for improved power management and operational efficiency. This combination of high capacity, rapid charging, and advanced cooling makes it ideal for heavy-payload agricultural drones, ensuring longer missions, quicker turnaround times, and reliable operation under demanding conditions.

  ●Tattu 3.5 Series Smart Li-ion Battery：Cost-effective 20-30L Agricultural Drone Power Solutions

The Tattu 3.5 Series Smart Li-ion Battery offers a high-performance and cost-effective solution for drone applications, delivering the same impressive features as the Tattu 4.0 Series but without the MOSFET modular design. With its reliable performance and lower cost, the Tattu 3.5 Series battery provides a flexible and economical option for users with varying needs, making it ideal for those seeking a balance between efficiency and affordability in demanding drone operations.
