An In-Depth Guide to Drone Motors

Drone motors are the heart of any drone's propulsion system, directly influencing the performance, efficiency, and reliability of the aircraft. The type, design, and specifications of a drone motor play essential roles in defining the drone's capabilities, from endurance and speed to payload capacity and agility. Understanding the intricacies of these motors is crucial for enthusiasts and professionals alike. This article explores the main types of drone motors, their operation, the key factors to consider in selection, and recent advancements in motor technology.

Types of Drone Motors

The primary types of drone motors are brushed and brushless motors, each with unique structures, performance characteristics, and applications. Here's a breakdown of each:

1. Brushed Motors

  ●Structure: Structure: Brushed DC motors consist of a simple design with a rotor that has windings and a commutator, along with brushes that maintain contact with the rotor to supply current.

  ●How they work: Brushed motors use carbon brushes to conduct electricity to the rotating armature. The brushes wear down over time, reducing the motor's lifespan.

  ●Performance: Brushed motors are less efficient and powerful than brushless motors, and they generate more heat. They are typically used in low-cost or toy drones where high performance is not critical.

2. Brushless Motors (BLDC)

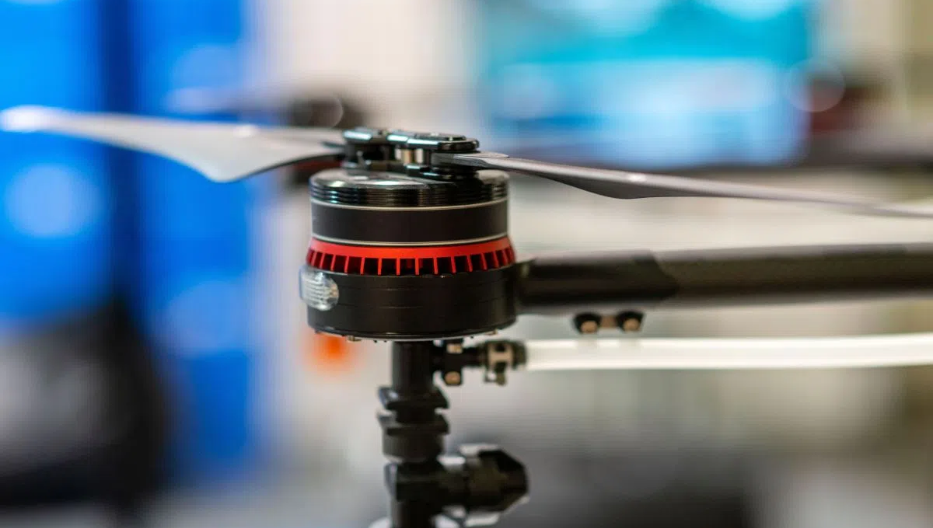

  ●Structure: Brushless motors have a stator (stationary part) with copper windings and a rotor with permanent magnets. Instead of brushes, they use an electronic speed controller (ESC) to control the switching of current in the windings.

  ●How they work: Brushless motors use electronic speed controllers (ESCs) to switch the current to the stator windings, creating a rotating magnetic field that spins the rotor.

  ●Performance: Higher efficiency, durability, less heat generation, more power, and greater torque for weight. They are also quieter and support high-speed operation. They are used in most modern drones, from small quadcopters to large delivery drones.

Key Specifications for Selecting a Drone Motor

When selecting a motor for a drone, understanding the specifications and factors that influence thrust and efficiency is crucial. Here’s an outline of the main factors to consider:

  ●Motor Size: Drone motors are often specified by a number format like 2212, where the first two digits refer to stator diameter (in mm) and the last two refer to stator height. Larger stators generally produce more torque, which supports larger propellers. Smaller motors are lighter and more responsive but have lower thrust and power output.

  ●KV Rating: Measured in RPM per volt (RPM/V), this indicates the motor speed at a given voltage. Lower KV motors provide more torque, suitable for larger props and heavier drones; higher KV motors suit smaller, faster drones with smaller props.

KV Rating and RPM

The KV rating (RPM per volt) indicates how many revolutions per minute (RPM) a motor will turn for each volt applied. For example, a motor with a KV rating of 1000 will spin at 1000 RPM when supplied with 1 volt.

KV Rating and Torque

A higher KV motor produces less torque for the same current because the windings are typically optimized for high speed rather than high torque. Conversely, a lower KV motor has more windings, which increases resistance but allows for greater torque at lower speeds.

Higher torque enables faster changes in propeller speed, allowing the drone to respond more quickly to control inputs, which is essential for agile maneuvers and maintaining stability in windy conditions. However, excessive torque can lead to jerky movements and potential instability, especially in delicate maneuvers.Thus, balancing torque with efficiency is key for optimal drone performance, especially in designs focused on extended flight time.

  ●Maximum Continuous Current and Power Rating: This indicates the maximum amount of current the motor can handle continuously without overheating. A higher current rating allows for more powerful motors and longer flight times. Ensure that the motor’s current draw and power output match the battery and ESC (electronic speed controller) specifications. Exceeding these limits can overheat and damage the motor or ESC.

  ●Voltage Compatibility: Choose a motor that supports the battery voltage of the drone (e.g., 3S, 4S, 6S batteries, where ‘S’ indicates the number of cells). Higher voltages generally allow higher power outputs but must be compatible with the motor's design.

  ●Internal Resistance: Lower internal resistance leads to higher efficiency and better power output.

  ●Propeller Compatibility: The choice of propeller size and pitch must match the motor specifications to optimize thrust and efficiency. Larger propellers typically generate more thrust but require more power from the motor.

  ●Weight: The motor weight impacts the overall weight of the drone, which in turn affects flight time and maneuverability. Choose a motor that balances power with an acceptable weight for the drone’s purpose.

What Deos The Number of Poles and Magnets (N And P) Mean?

We usually see terms like 12N14P in the motor parameters of drones. What does it mean? In fact, 12 represents the number of electromagnetic poles in the motor's stator. 14 indicates the number of permanent magnets installed on the rotor. In the context of drone motors, the terms "poles" and "magnets" are often used interchangeably, but they represent distinct components within the motor's construction.

  ●Poles: These are the electromagnetic coils in the stator (the stationary part of the motor) that generate a magnetic field when energized.Commonly, drone motors have between 4 and 24 poles, depending on their application. A higher pole count generally means smoother, more precise motor control, which is essential for applications like drone stabilization.

  ●Magnets: These are permanent magnets embedded in the rotor. The number of magnets is often close to the number of poles, though not necessarily identical, as it depends on the motor's design to create synchronous or asynchronous rotation patterns.

How N and P Impact Motor Efficiency?

The configuration of poles and magnets impacts motor efficiency and performance in several ways:

  ●Smoothness and Control: More poles and magnets can lead to smoother operation and better torque characteristics. This is because they allow for more frequent magnetic interactions, which can reduce cogging torque (the resistance to movement when the rotor is stationary) and enhance responsiveness during flight.

  ●Torque Production: A higher pole and magnet count generally increases the torque output and makes the motor more suitable for applications requiring greater thrust, like lifting heavier payloads or steady hovering in stable flight , as it allows the drone to respond quickly to control inputs without significant lag.

Efficiency and Speed: Motors with fewer poles and magnets typically spin at higher speeds with less torque. For high-speed drones, a low pole/magnet count is often chosen to achieve faster RPMs (revolutions per minute).

How Does The Size of the Propeller Affect the Motor?

Larger or higher-pitched propellers generate more lift but require more torque, meaning they pair best with low-KV, high-torque motors to avoid overload and maintain efficiency. Conversely, smaller or lower-pitched propellers work well with high-KV motors, favoring speed over lift. Larger propellers generally produce more thrust but may reduce speed and efficiency, while smaller propellers offer higher speeds but lower thrust. Propeller type—such as material (carbon fiber for rigidity, plastic for flexibility) and blade count—also impacts stability, thrust, and efficiency.

How Do Voltage and Current Requirements Affect Motor Selection and Battery Pairing?

Voltage and current requirements are fundamental in motor selection and battery pairing, as they determine the motor’s power output and efficiency. Motors rated for higher voltage can achieve higher RPMs, delivering more power, but they also demand a compatible battery with sufficient voltage output, such as a higher cell-count LiPo battery (e.g., 6S, 12S). Current, on the other hand, affects the motor's torque and responsiveness; higher current draw increases torque but also generates more heat, requiring both efficient cooling and a battery that can supply the necessary current without quickly depleting. Mismatching voltage or current capabilities can lead to reduced performance, motor damage, or even battery failure.

What Is the Role of The ESC in The Motor System of A Drone?

Electronic speed controllers (ESCs) are essential in drone motor systems, serving as the link between the flight controller, battery, and motors. ESCs regulate the power supplied to each motor by adjusting the voltage and current, which directly controls motor speed and ensures precise synchronization. They interpret signals from the flight controller to modulate motor RPMs, enabling smooth acceleration, braking, and directional adjustments, which are vital for stability and maneuverability. In brushless motors, ESCs convert direct current (DC) from the battery into three-phase alternating current (AC), which is necessary for motor operation. Each motor typically requires its own ESC, enabling independent speed adjustments that contribute to stable flight and maneuverability. Additionally, ESCs can incorporate features like active braking and battery management, enhancing overall performance by ensuring efficient power use and preventing battery damage.

What Are the Latest Advancements in Drone Motor Technology?

Recent advancements in drone motor technology focus on enhancing efficiency, power density, and control precision to improve flight performance. Innovations include the development of brushless motors with higher magnetic strength, which increase torque without significantly raising size or weight, resulting in more compact and powerful designs. Improved cooling mechanisms, such as integrated airflow systems and heat-resistant materials, allow motors to operate at higher current levels without overheating, crucial for sustained high-performance flights. Additionally, sensor-based technologies, like field-oriented control (FOC) and motor position sensors, provide smoother and more precise motor control, enhancing stability and responsiveness. Besides, improvements in electronic speed controllers (ESCs) have enabled more precise control and responsiveness, facilitating better flight performance. These improvements allow drones to achieve longer flight times, better stability in challenging conditions, and optimized performance in specialized applications like heavy lifting, racing, and aerial photography.

How to Choose a Motor for Specific Applications?

Drones are now widely used in various applications such as racing, aerial photography, industry, and logistics. How do you choose the right motor for different drone applications?

  ●Racing Drones: High-KV, high-RPM motors for agility and speed.

  ●Aerial Photography: Low-KV, high-torque motors for smooth, stable flight with large props.

  ●Industrial Drones: Low-KV motors with high torque for lifting payloads and maintaining stability.

  ●Delivery Drones: Efficient, high-thrust motors for carrying payloads over long distances.

In each case, proper motor selection ensures that the drone meets the demands of its intended use, balancing speed, efficiency, and thrust capacity.

Drone motors come in a variety of types and configurations, each with unique advantages. Understanding how each motor type functions, along with key specifications like KV rating, thrust, and ESC compatibility, is essential in selecting the right motor. As drone technology continues to evolve, motor advancements will likely play a pivotal role in achieving higher efficiency, greater power, and more specialized functionality across a wide range of drone applications. Grepow offers UAV batteries and semi-solid state batteries ranging from 4S (14.8V) to 18S (68.4V) with capacities up to 84Ah, designed to support a wide variety of applications and compatible with drones equipped with diverse motor setups. If you have any questions or needs, please feel free to contact us at info@grepow.com.
