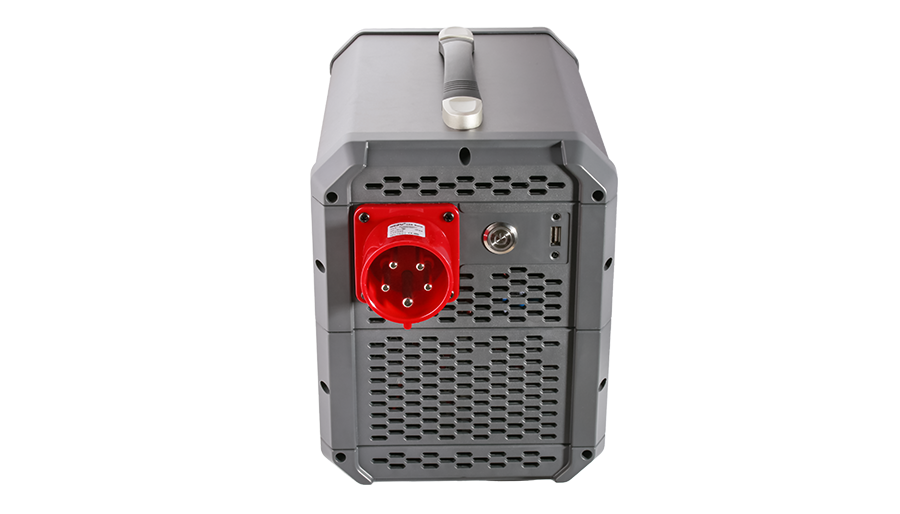

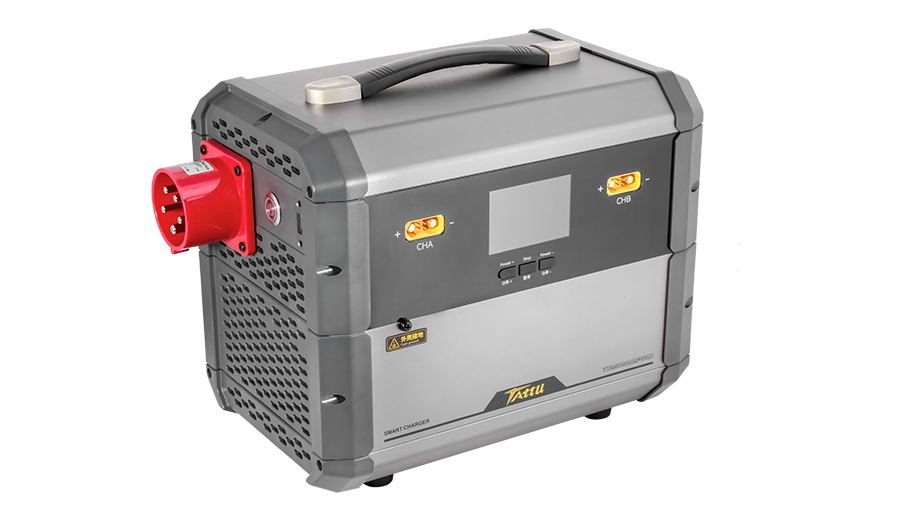

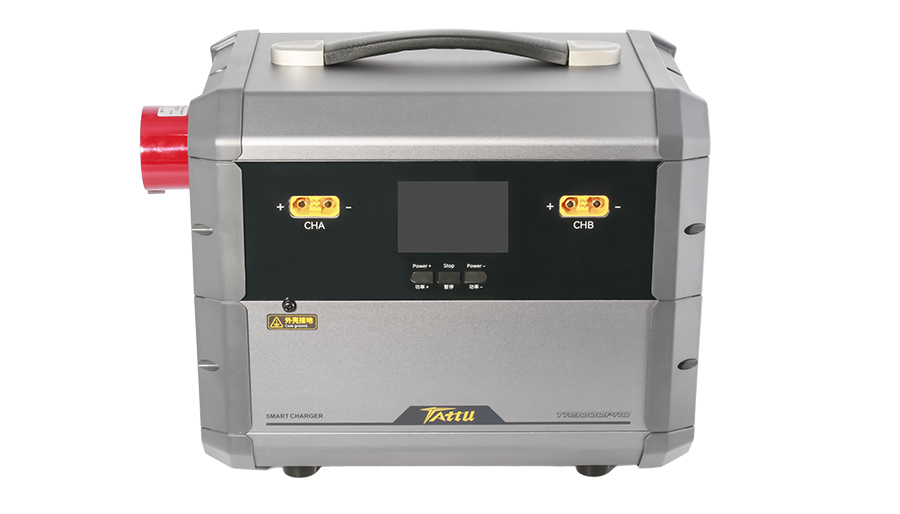

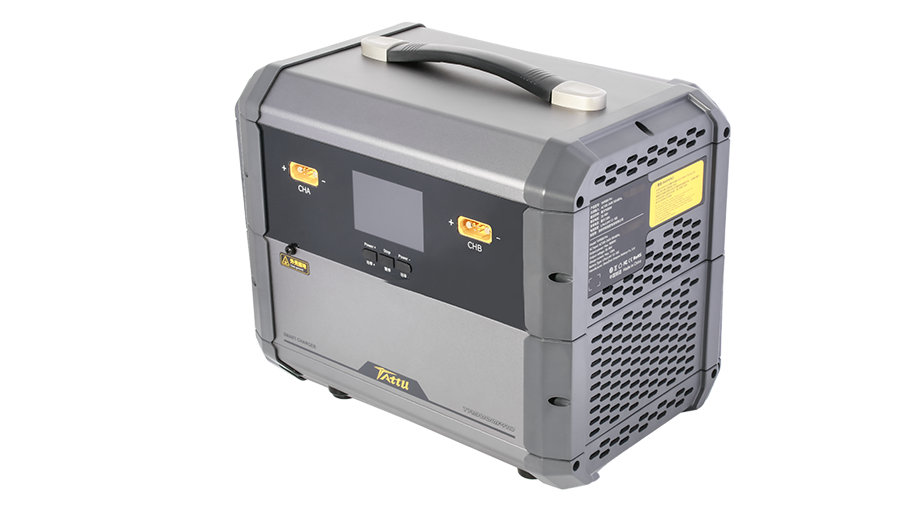

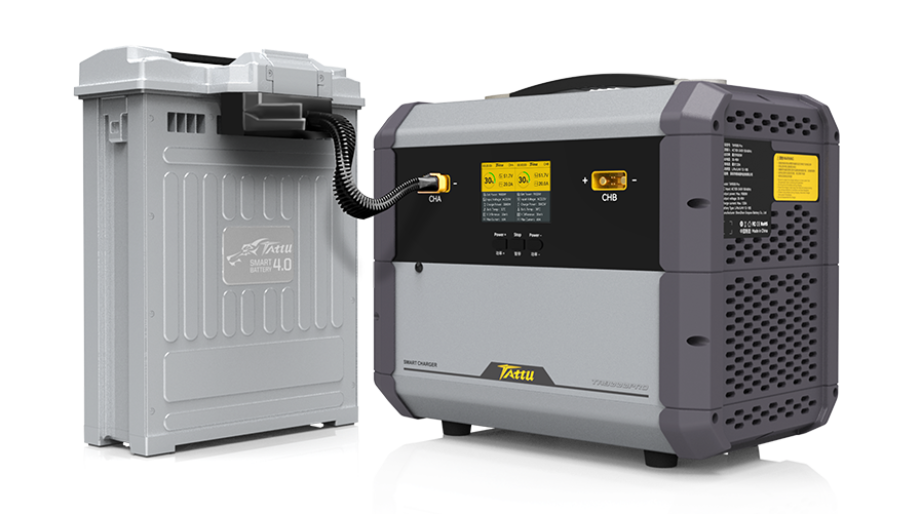

TA9000 Plus 9000W 12-24S Dual Channel Drone Battery Smart Charger
TA9000 Plus dual-channel intelligent charger, access to Tattu intelligent drone battery can automatically recognize the battery information, no need to manually set parameters. This product has over-temperature protection, over-current protection, over-charging protection, disconnection protection and other protection functions. During the charging period, the charger will monitor the status information of the battery in real time, and when the battery is fully charged, the charger will automatically stop charging.
● High Power
● Plug and Charge
● Intelligent Management
● Extremely Convenient
Model | TA9000 Plus |
Input Voltage | AC 100~240V 50/60Hz50A(Max),three-phase input not supported |
Output Voltage | DC 35~90V |
Charging Current | 120A(Max) |
Maximum Charging Power | 9000W |
Operating Temperature | 0~60℃ |
Storage temperature | -20~60℃ |
Size | 398x225x308mm |
Weight | about 14Kg |
Supported Battery Types and Strings | LiPo/ LiHV/LiUHV 12-24S |
TA9000 Plus 12S/14S/18/24S Smart Drone Battery Charger User Guide
TA9000 Plus Battery Charger Firmware Upgrade Package
No. | Battery Model | Dimension(±5mm) | Weight(±100g) |
1 | 152x82x220mm | 2800g | |
2 | 224x163x90mm | 4250g | |
3 | 224x90x164mm | 4550g | |
4 | 234x116x172mm | 5750g | |
5 | 238x117x174mm | 7200g | |
6 | 238x117x174mm | 6300g | |
7 | 238x117x174mm | 7350g | |
8 | 186x96x236mm | 4300g | |
9 | 290x91x236mm | 8800g | |
10 | 290x91x236mm | 7950g | |
11 | 290x91x236mm | 9100g | |
12 | 251*102*333mm | 11500±300g | |
13 | 251*103*261mm | 7900±300g | |
14 | 324x127x274mm | 13800g |
