TA3200 Series Dual Channel 6-14S Drone Battery Smart Chargers

Solution Details

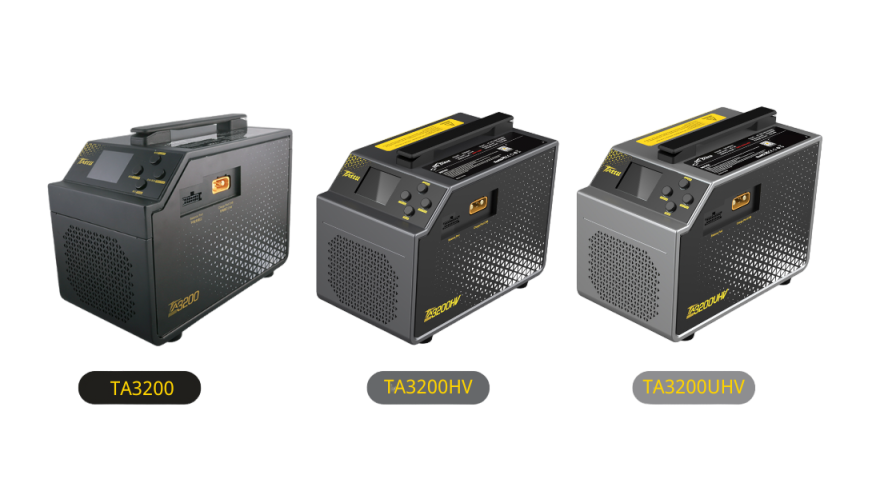

The TA3200 series charges are dual-channel smart chargers that automatically recognizes Tattu smart battery details, enabling plug-and-charge convenience without manual parameter adjustments. The TA3200 series includes three models designed to accommodate different operating voltages; TA3200 supports 4.2V, TA3200HV supports 4.35V, and TA3200UHV supports 4.45V. It's also compatible with non-smart batteries, requiring only simple charging current and mode settings. With features like over-temperature, over-current, overcharge, and disconnection protection, it monitors battery status in real-time during charging.

TA3200 Series 6-14S Dual-Channel Drone Battery Charger Features

● Intelligent Recognition

● Plug and Charge

● Real Time Monitoring

● Precise & Convenient

TA3200 Series 6-14S Smart Charger Parameters

Model	TA3200 Series	Supported Battery Types and Cell Count	6-14S Pouch or Smart Battery
Input Voltage	AC 100-240V 50/60Hz 15A (Max)	Operating Voltage	TA3200: 4.2V; TA3200HV: 4.35V; TA3200UHV: 4.45V
Output Voltage	DC 15~60V	Temperature	Working: 0~60 ℃; Storage: -20~60 ℃
Charging Current	Up to 60A	Dimensions	276x154x216mm
Disharging Current	Up to 3A	Weight	about 6Kg
Maximum Charging Power	3200W	Maximum Discharging Power	70W * 2

Resource Download

TA3200 Series 6-14S Smart Drone Battery Charger User Guide

TA3200 Charger Firmware Upgrade Package

TA3200HV Charger Firmware Upgrade Package

Recommended UAV Battery Pairings

No.	Charger Type	Battery Model	Dimension(±5mm)	Weight(±100g)
1	TA3200	Tattu NMC 811 5C 17000mAh 44.4V 12S1P	200x111x73mm	2950g
2	TA3200	Tattu NMC 811 5C 22000mAh 44.4V 12S1P	200x133x79mm	3850g
3	TA3200	Tattu NMC 811 5C 20000mAh 44.4V 12S1P	200x122x78mm	3500g
4	TA3200	Tattu NMC 811 5C 28000mAh 44.4V 12S1P	215x126x93mm	4800g
5	TA3200	Tattu NMC 811 5C 30000mAh 44.4V 12S1P	213x132x93mm	4900g
6	TA3200	Tattu Plus 25C 10000mAh 22.2V 6S1P	186x70x63mm	1517g
7	TA3200	Tattu Plus 15C 12000mAh 22.2V 6S1P	202x76x61mm	1670g
8	TA3200	Tattu Plus 15C 16000mAh 22.2V 6S1P	202x83x70mm	2063g
9	TA3200	Tattu Plus 25C 22000mAh 22.2V 6S1P	214x96x68mm	2640g
10	TA3200	Tattu PLUS 1.0 Compact 15C 10000mAh 44.4V 12S1P	217x80x150mm	2800g
11	TA3200	Tattu PLUS 1.0 Compact 15C 16000mAh 44.4V 12S1P	224x163x90mm	4250g
12	TA3200HV	Tattu NMC AGRI 25C 16000mAh 22.8V 6S1P	202x77x59mm	1880g
13	TA3200HV	Tattu NMC AGRI 25C 22000mAh 22.8V 6S1P	208x90x63mm	2473g
