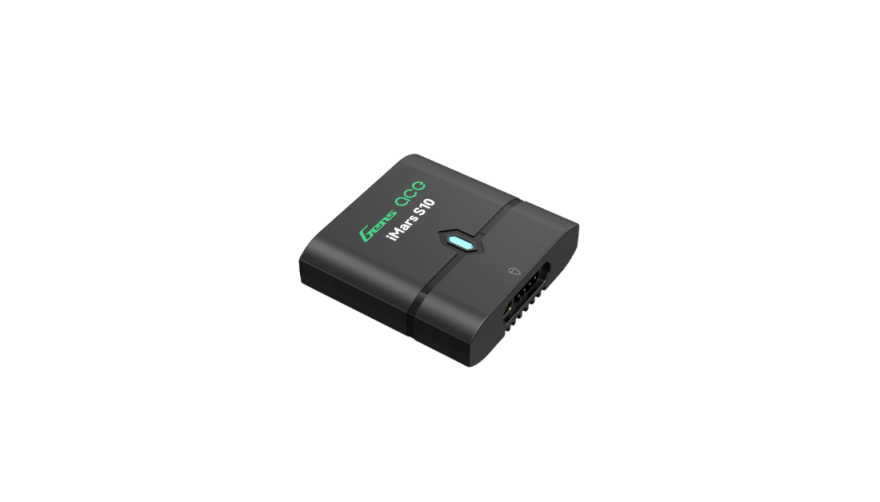

The newly launched iMars S10 joins the G-Tech Eco series, designed primarily for 7.4V, 7.7V, 11.1V, and 11.4V configurations, making it a flexible choice for various battery types. Equipped with a G-Tech connector, the iMars S10 intelligently detects whether a battery is a High-voltage version and automatically selects the optimal charging mode. For non-G-Tech batteries, it defaults to a standard 4.2V per cell charge, ensuring reliable and safe performance across all compatible batteries.
●Ultra-portable, weighs less than 30g
●10W Max, Fast Charge 2-3S LiPo
●Plug-and-Play
●Intelligent recognition with G-Tech, effortless charging process
●Abnormal voltage alarm and reverse connection protection
Max.Charge Power: 10W
Charge Current: Max.0.8A
Charging Connector: Only Balancing Connector allowed
Input voltage: 5V
Output Voltage: 5~13.05V
Max.Input Current: DC2A
Balance Current: Max.80mA
Input port:BC1.2/SDP/CDP/DCP/Apple 5V/2.4A
(Unavailable for 5V/1A power supply adapter input)
Abnormal battery voltage alarm:Yes
Output reverse connection protection and alarm: Yes
Balance port reverse connection protection and alarm: Yes
Supported Battery Types: LiPo 2~3S
Working Temperature: 0~45C
Storage Temperature: -20℃~60℃
Dimension: 51x51x14mm
Net Weight: Apporx. 23 g
Working Status | Indicator Description |
Connected to power | Green flashing three times |
Charging G-Tech Lipo battery | Red light blinks after two simultaneous red and green flashes |
Charging non-G-Tech Lipo battery | Red flashing |
Full charge | Solid green light |
Error warning | Solid red light |
No. | Battery Type | Cell Count |
01 | 2S-3S Lipo | |
02 | 2S-3S Lipo |
