Gens ace iMars mini is an RC smart charger featuring palm size and simplicity that can intelligently adjust the charging current according to the charging voltage flow of the battery, which helps safely charging and prolong battery cycles. Gens ace, under Grepow, is recognized for manufacturing reliable and efficient RC battery solutions--battery packs and chargers, often used in RC (radio-controlled) models, RC cars, airplane and other high-performance applications.
● Portable Design: Small, lightweight, and easy to carry.
● Versatile Charging: Support 2-4S LiPo, LiHV, LiFe, and 2-12S NiMH batteries.
● Automatic Storage Function: The smallest charger with an auto storage feature.
● Enhanced Interface: New interface design with increased balance connector durability.
● Smart Battery Recognition: Intelligently recognize G-Tech smart battery info through an IC chip for safe and easy charging.
Model | iMars mini | Supported Battery Types and Cell Count | Lipo/LiHv/LiFe(2~4S), NiMH(2-12S) |
Input Voltage | 5~20V | Working Temperature | 0~40 ℃ |
Output Voltage | DC 2.5~18V | Storage Temperature | -20~60 ℃ |
Charging Current | 1-5A, Max. 5A(Auto Adjustment) | Dimensions | 85x55x21mm |

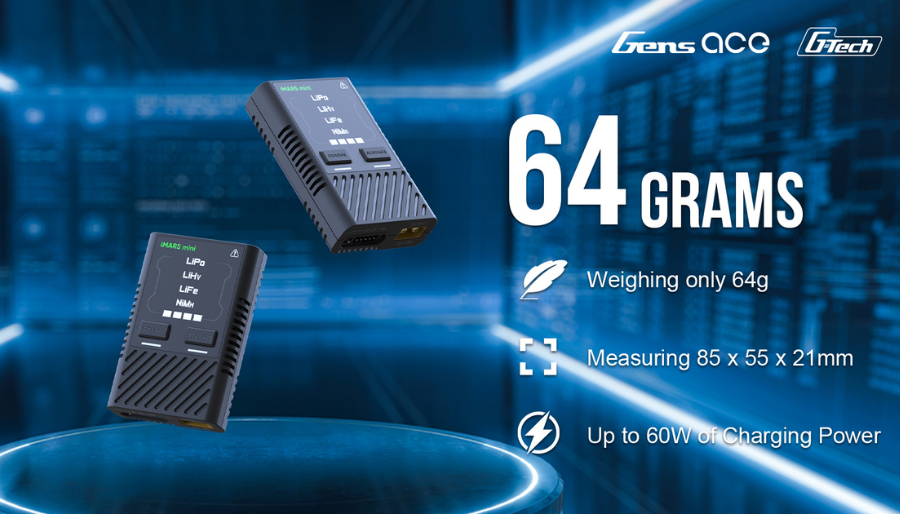

Balance Current | 0.4A/Cell X 2 | Weight | Approx. 64g |
Max. Charge Power | 60W | Abnormal Battery Voltage Alarm | Yes |
iMars mini the Smart RC Charger User Guide
No. | Battery Model | Dimension(±5mm) | Weight(±10g) |
1 | Gens ace G-Tech Soaring 450mAh 7.4V 30C 2S1P Lipo | 56.5x31x9mm | 97g |
2 | Gens ace 6800mAh 11.1V 120C 3S1P Lipo | 157x48x32mm | 521g |
