Model NO. | C-Rate | Nom. Voltage | Capacity | Max Cont. Discharge | Thickness (mm) | Width (mm) | Length (mm) | Weight (g) |
GRP6542126 | 5C | 3.7V | 5000mAh | 15A | 6.3±0.2 | 41.5±1.0 | 126.5±1.0 | 70.0±3.0 |
GRP9840121 | 5C | 3.7V | 7200mAh | 21.6A | 9.5±0.3 | 39.5±1.0 | 121.5±1.0 | 100.0±3.0 |
GRP8272160 | 5C | 3.7V | 14200mAh | 42.6A | 7.9±0.3 | 71.5±1.0 | 159.5±1.0 | 196.0±5.0 |
GRP6890190 | 5C | 3.7V | 17600mAh | 52.8A | 6.6±0.2 | 89.5±1.0 | 189.0±1.0 | 241.0±5.0 |
GRP9975175 | 5C | 3.7V | 20000mAh | 60A | 9.3±0.3 | 74.5±1.0 | 174.5±1.0 | 265.0±5.0 |
GRP9988188 | 5C | 3.7V | 27000mAh | 81A | 9.6±0.3 | 87.5±1.0 | 187.5±1.0 | 355±10.0 |
GRPA388188 | 5C | 3.7V | 27000mAh | 81A | 10.0±0.3 | 87.5±1.0 | 187.5±1.0 | 366.0±10.0 |
GRP9890190 | 5C | 3.7V | 27300mAh | 81.9A | 9.5±0.3 | 89.5±1.0 | 189.0±1.0 | 360.0±10.0 |
GRPA290190 | 5C | 3.7V | 28000mAh | 84A | 9.9±0.3 | 89.5±1.0 | 189.0±1.0 | 377.0±10.0 |
GRPA988188 | 5C | 3.7V | 30000mAh | 90A | 10.6±0.3 | 87.0±1.0 | 187.0±1.0 | 387.0±10.0 |
GRPA388220 | 5C | 3.7V | 30200mAh | 151A | 10.0±0.3 | 87.0±1.0 | 219.0±1.0 | 409.0±10.0 |
GRPB288188 | 5C | 3.7V | 31500mAh | 157.5A | 10.9±0.3 | 88.0±1.0 | 188.0±1.0 | 410.0±10.0 |
GRPA088188 | 5C | 3.7V | 33600mAh | 100.8A | 9.7±0.3 | 87.0±1.0 | 187.0±1.0 | 389.0±10.0 |
GRP99C0189 | 5C | 3.7V | 35200mAh | 105.6A | 9.6±0.3 | 119.5±1.0 | 190.0±1.0 | 470.0±10.0 |
GRP95C0200 | 5C | 3.7V | 37000mAh | 185A | 9.2±0.3 | 120.0±1.0 | 200.0±1.0 | 492.0±10.0 |
GRPA1C0200 | 5C | 3.7V | 41000mAh | 123A | 9.8±0.3 | 120.0±1.0 | 200.0±1.0 | 526.0±10.0 |
● High energy ● Long endurance ● Fast charging capability ● Customizable: shape / size ● Long cycle life: Over 80% capacity after 1000 cycles ● High temperature storage | ● Complex-coated separator, more safety ● Can be equipped with intelligent protection board: BMS ● Si material, over-discharge resistance (2.5V) ● Extremely light weight 27% lighter than ordinary batteries with the same number of strings and capacity ● High energy density Energy density 350Wh/kg, 40% higher than NCM523, 40% higher than NCM62 |

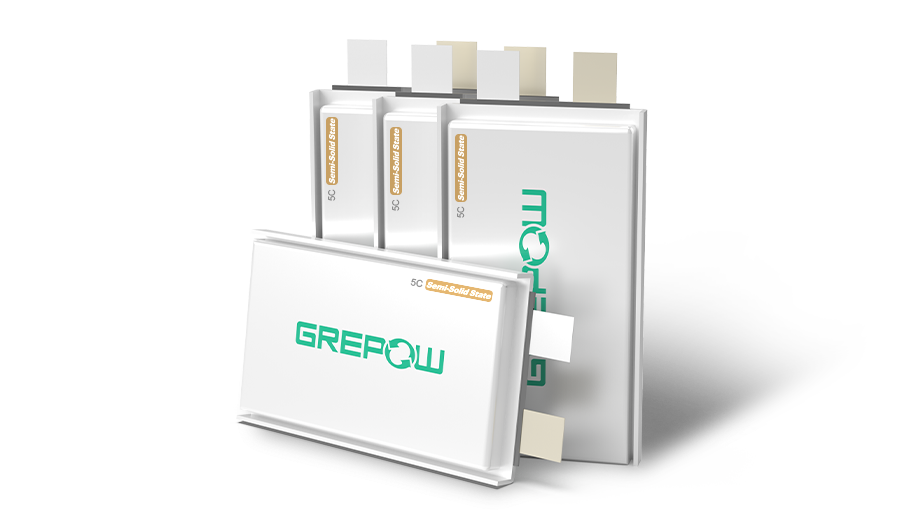

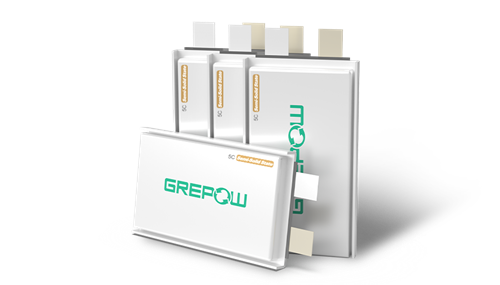

NMC811 battery is Grepow's self-developed high nickel battery, its energy density can reach 350Wh/kg, higher than ordinary batteries, higher capacity, longer range, we can also customize NMC811 high energy density battery for different industries according to the actual needs of users so that your products have greater competitive ability.
▶ Source manufacturer, physical factory, strong R&D production capacity, short delivery time and sufficient stock.
▶ Self-developed battery cells, sufficient capacity, refusal of false label, guaranteed capacity
▶ Strict quality control: Construct a comprehensive quality system from parts to finished products to ensure product quality
▶ Safe and reliable: conform to various domestic and international battery certifications
▶ Perfect service system: Quickly respond to customer problems and provide solutions
▶ Instant local customer support in China, USA and Germany
You can get the following services
● Flexible support for customization
● Reliable and stable performance
● Sample and mass production available
● OEM and ODM services are available
The 350Wh/kg high energy density battery developed and produced by Grepow is the NMC811 high nickel battery system. The higher energy density provides longer endurance and can be used in airborne manned aerial vehicles, agricultural plant protection drones, industrial patrol drones, mapping drones, logistics and transportation drones, portable energy storage and other fields.
● Agricultural Spraying Drone Battery
● Mapping & Surveying Drone Battery
