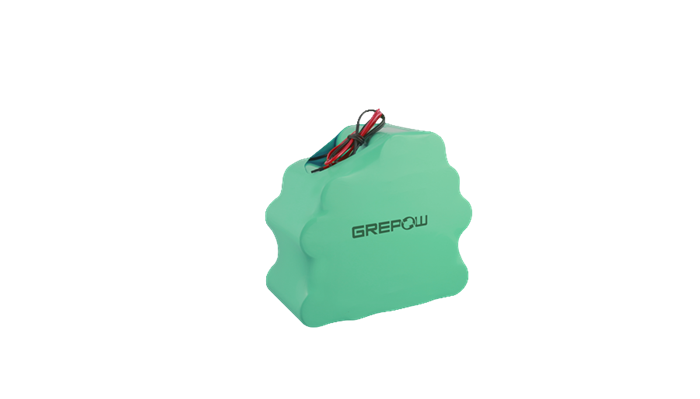

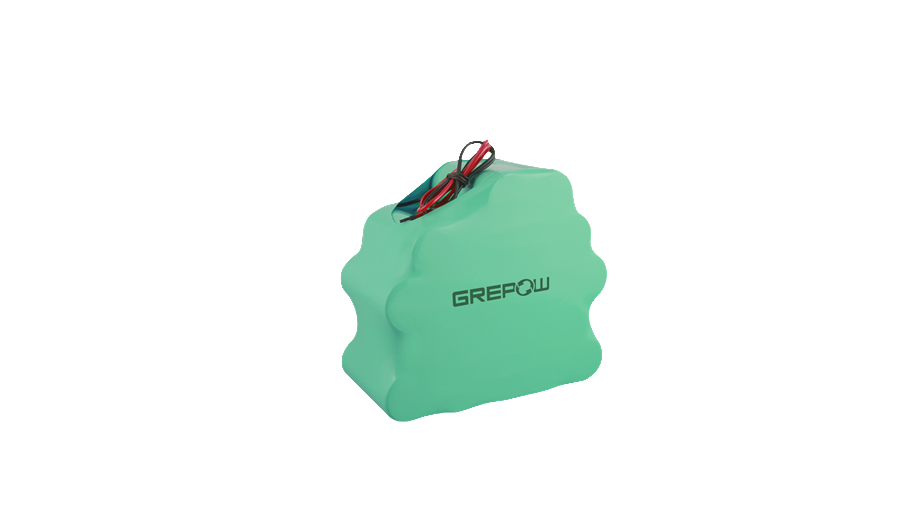

24V 20Ah NiMH Backup Power Supply For Mining Trucks

24V 20Ah NiMH Backup Power Supply For Mining Trucks

24V 20Ah NiMH Backup Power Supply For Mining Trucks

A backup power system for mining rubber tire trucks is a system that provides power when the main power fails. These trucks, used in mines and quarries, are specially designed to carry heavy loads. Due to the challenging work environment, power failures can occur while the truck is in use. To ensure the truck keeps functioning safely, it needs a backup power source. Because of the demanding conditions, these trucks often use nickel-metal hydride (NiMH) batteries. Grepow, a company with 26 years of experience in making NiMH batteries, offers certified, high-quality batteries specifically designed for mining vehicles, and also provide custom battery solutions.
Contact us
Product Details

● Battery Model: NI-MH M20000mAhx20

● Nominal Voltage: 24V

● Nominal Capacity: 20000mAh (20Ah)

● Size: 211x190x96mm

● Internal Impedance: ≤350mΩ

● Standard Charge Current: 2000mA(0.1C)

● Fast Charge Current: 4000mA(0.2C)

● Trickle Charging Current: 400mA(0.02c)

● Max Discharge Current: 20A(1C)

Features of Nickel-metal Hydride Batteries

 Ultra-high capacity

 Strong fast-charging capability

 Cost-effective

 No memory effect
 Customized Operating temperature range

Ultra-low self-discharge

Longer cycle life

High-power discharge

Environmentally friendly, non-polluting

Safety and reliability, compliant with various certifications such as ROHS, CE, UL, UN38.3, MSDS, etc.

Why choose Grepow for NiMH batteries in Mine Truck backup power supplies?

NiMH batteries in Mine Truck backup power supplies

Grepow was founded in 1998 and started off by focusing on producing more eco-friendly rechargeable Nickel-metal Hydride batteries. Over the past years, we've gained extensive experience in NiMH battery production. Our production facility spans an area of 63,000 square meters with approximately 1300 employees, including 80 R&D technicians and 100 quality inspector who mainly focus on researching and producing NiMH batteries, with a daily production capacity of 500,000 units. Meanwhile, Grepow accepts more customized NiMH batteries for mining.

Wide operating temperature range -20℃~80℃, suitable for mining wheelbarrow backup power.

 Customized and wholesale: if you need different capacity of mining batteries, we can customize them.

 Short delivery time: 7 days for samples, 35 days for large shipments./span>

 Long cycle life of mining batteries: ≥500 cycles.

 Grepow mining wheelbarrow backup power nickel-metal hydride batteries are specifically low internal resistance, high current, small volume, large energy, green, does not contain mercury, chromium, lead and other harmful substances, through the authoritative testing and certification, with CE, CD, UN38.3, KC and other certification qualifications, and at the same time, can be approved by the mining coal safety certification.
